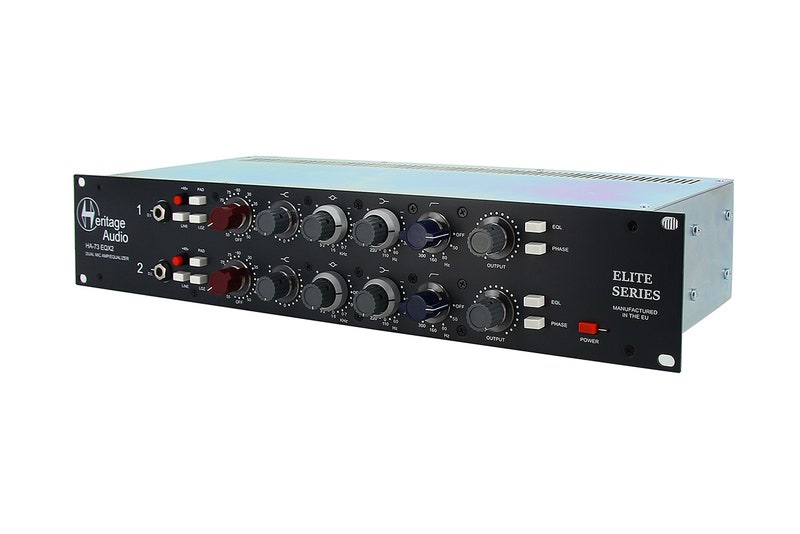

Heritage Audio HA-73EQx2 Elite

Tuotenumero 1064755

Kaksikanavainen mikrofonietuvahvistin ekvalisaattorilla

Tilapäisesti loppu

Maksa heti, laskulla tai osamaksulla - Tallenna kortti ja pankkitili - Helppo ja turvallinen - Klarnan ostajan suoja

€1799,00/kpl

Based on the 1073
Hand-wound Carnhill transformers
Completely discreet, three-stage microphone preamp
Microphone input impedance: HI, 1200 Ohm minimum, LO, 300 Ohm minimum.
Higher gain positions gradually have greater impedances, optimum for low gain ribbon mics.
Input is transformer balanced and floating.
Line input impedance: 10KOhms bridging, transformer balanced and floating.
Output impedance: Less than 75 Ohms, transformer balanced and floating, to drive a load of 600 Ohms.
Maximum output: Greater than +26.5dBu into 600 Ohms (internally terminated).
THD: Less than 0.025% at 1Khz, Less than 0.05% at 100Hz.
Frequency response :20Hz (+0.3dB) to 20Khz (-0.2dB). EQ Off. For EQ ON frequency response please check the features section.
Maximum Gain: Slightly greater than 80dB.
Equivalent Input Noise: Less than -125dBu.
Output stage noise: Less than -100dBu.
Power consumption: Less than 190 mA @48VDC.
