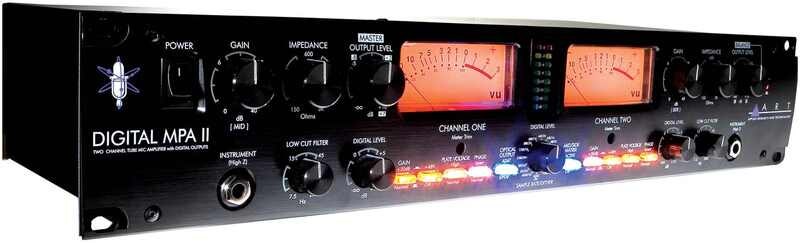

ART Digital MPA II

The ART Digital MPA-II delivers all of the same great features of the ProMPA with the added versatility of digital output. Like the ProMPA-II, each input circuit has 48v phantom power and features variable input impedance which can radically vary the overall performance of any high quality dynamic or ribbon microphone. The Digital MPA-II can be configured for dual mono or stereo operation with selectable mid/side mic support, summing the adjacent channel, to decode left/right signals.

Specifications

Analog Section:

• Frequency Response 15Hz to 48 kHz (+0, -1dB) @ normal plate voltage
  15Hz to 120 kHz (+0, -1dB) @ high plate voltage
• Dynamic range: >110dB (“A” weighted)
• CMRR: >90dB
• THD: <0.005% (typical)
• Equivalent Input Noise: -129dBu (XLR, “A” weighted)
• Maximum Input Level: +19dBu (cannon)
• Maximum Instrument Input: +17dBu
• Input Impedance: 150-3000 (Omega) adjustable (XLR)
  >800k (Omega) (Instrument)
• Maximum Output Level: +27dBu (XLR)
• Output Impedance:: < 47 (Omega) (XLR)
• Maximum Gain: 75dB
• Meter Calibration: 0 VU = +4dBu output (+4dB mode)
  0 VU = -10dBV output (-10dB mode)
• High Pass Filter: single pole, 10-200 Hz adjustable

Digital Section:

• A/D Frequency Response:
  @44.1KHz sample rate: 10Hz to 21.25KHz (+0, -1dB)
  @88.2KHz sample rate: 10Hz to 42.50KHz (+0, -1dB)
  @196KHz sample rate: 10Hz to 81KHz (+0, -1dB)
• A/D Dynamic Range: >112dB “A” weighted (typical)
• A/D THD: <0.001% @1K (typical)
• A/D Input Sensitivity: +12dBu min
• A/D Insert Input Impedance: >10k (Omega)
• Power Requirements: USA – 105 to 125 VAC / 60 Hz Export units configured for country of destination
• Dimensions: (HxWxD in) 3.50 x 19.0 x 8.75
• Dimensions: (HxWxD mm) 88 x 482x 222
• Weight: (lb/kg) 10.5 / 4.7
