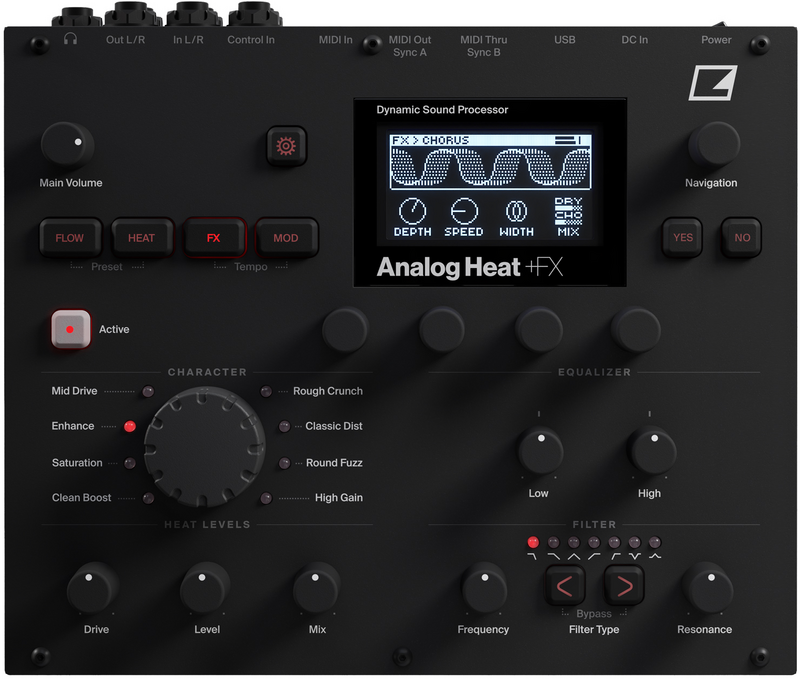

Elektron Analog Heat +FX

Specifications

Sound processing

• 8 × stereo analog distortion circuits
• Stereo analog multi-mode filter (7 filter types)
• 2-band adaptable stereo analog EQ
• Noise Gate
• Reverb
• Delay
• Chorus
• Warble
• Bits
• Compressor
• Bass focus

Modulation

• 1 × assignable envelope generator/envelope follower with two destinations
• 3 × assignable LFO (with two destinations per LFO)

Storage

• 512 user preset slots

Hardware

• 128×64 pixel OLED screen
• MIDI In/Out/Thru with DIN Sync out
• 2 × ¼″ balanced audio out jacks
• 2 × ¼″ balanced audio in jacks
• 1 × ¼″ stereo headphones jack
• 2 × ¼″ CV/Expression pedal input jacks
• 48 kHz, 24-bit D/A and A/D converters
• Hi-Speed USB 2.0 port

Audio outputs

• Headphones out level: +19 dBu peak
• Headphones output impedance: 36 Ω
• Impedance balanced main outputs level: +19 dBu peak
• Main outputs impedance: 440 Ω unbalanced

Audio inputs

• Balanced audio input level: +19 dBu peak
• Audio input impedance: 39 kΩ

Control inputs

• Input level: -5 V – +5 V
• Accepts CV, expression pedals, footswitches

Physical specifications

• Sturdy steel casing
• Dimensions: W215 x D184 x H63 mm (including audio outputs, knobs and feet)
• Weight: approximately 1.5 kg
• 100x100 mm VESA mounting holes

Miscellaneous

• Overbridge enabled
• Class compliant USB audio
• 3 year Elektron warranty

Included in the box

• Power Supply PSU-3c
• Elektron USB cable
