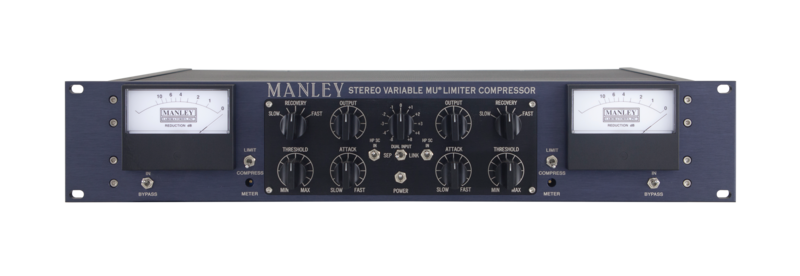

Manley Variable MU Compressor/Limiter
Tuotenumero 1072508Variable Mu Limiter – putkikompressori on liima, joka pitää miksauksesi kasassa ja kiteyttää sen ammattimaiseksi lopputuotteeksi.
Tilapäisesti loppu
Maksa heti, laskulla tai osamaksulla - Tallenna kortti ja pankkitili - Helppo ja turvallinen - Klarnan ostajan suoja
€4699,00/kpl
The Variable Mu Limiter Compressor is the GLUE that holds the mix together while crystallizing it into a professional, final product. All-tube, all transformer, an all-American legend. High Pass Side Chain mod now comes standard.
SPECIFICATIONS
- MANLEY input & output transformers with nickel laminations in mu-metal cases with flat frequency response from 20Hz-25KHz
- BALANCED INPUTS & OUTPUTS (600 Ohms)
- Fully differential ALL-TUBE circuitry
- Variable Gain vacuum tube: 5670 x2 Standard or 6BA6 x4 T-BAR Mod
- Amplifying vacuum tubes: 5751 or 12AX7 x2
- Output vacuum tubes: 12BH7 x2 current production since 4/2016
- Output vacuum tubes: prior to MSLC94006 use 7044 or 5687 x2
- Side Chain Rectifier Diodes: 12AL5 x2
- Independently regulated B+ and Heater supplies
- Hardwire BYPASS switch
- Stepped switch INPUT attenuator as of 10/2011. (older units use Silent dual-ganged potentiometer)
- RECOVERY 5 steps: 0.2s, 0.4s, 0.6s, 4sec., 8sec.
- Variable ATTACK: 25msec-70msec
- Continuously variable THRESHOLD
- LIMIT (4:1 to 20:1) or COMPRESS (1.5 to 1)
- HP SC: High Pass Side Chain Filter -3dB @ 100Hz
- Large ILLUMINATED Sifam METERS (older units before serial number MSLC61642 shipped before 12/2003 use: 26V 1.2W FESTOON LAMPS; Manley's Part Number: VAR016B) Order spare bulbs using our parts order form. (newest units after serial number MSLC61642 shipped after 12/2003 use white LED lighting)
- STEREO LINK SWITCH
- Several units can be linked for Surround (custom order )
- Maximum gain: 35dB
- Max. output: +30dBu (26Vrms) 26dB Headroom
- <0.1% THD @ 1KHz Noise floor: -85dB typical
- Power Consumption (120/240VAC): 80 watts
- Unit is factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.
- Operating Mains Voltage changeable with power transformer changeover switch and fuse value change.
- Mains Fuse Value for 100~120VAC operation: replace with 1.25A as of 10/2011
- Mains Fuse Value for 220~240VAC operation: replace with 0.6A (600mA) as of 10/2011
- Mains Fuse Type: MDA or MDL SLO-BLO Time delay 1 1/4" x 1/4"
- Mains Voltage Frequency: 50~60Hz
- Dimensions: 19” x 3 1/2” x 10” (chassis occupies 2u) Power transformer protrudes 3.5" out the back of the chassis.
- Shipping Weight: 23 lbs.
