WesAudio Calypso
Tuotenumero 10757318 channels of AD/DA conversion and perfectly integrates with ng500/500-series chassis

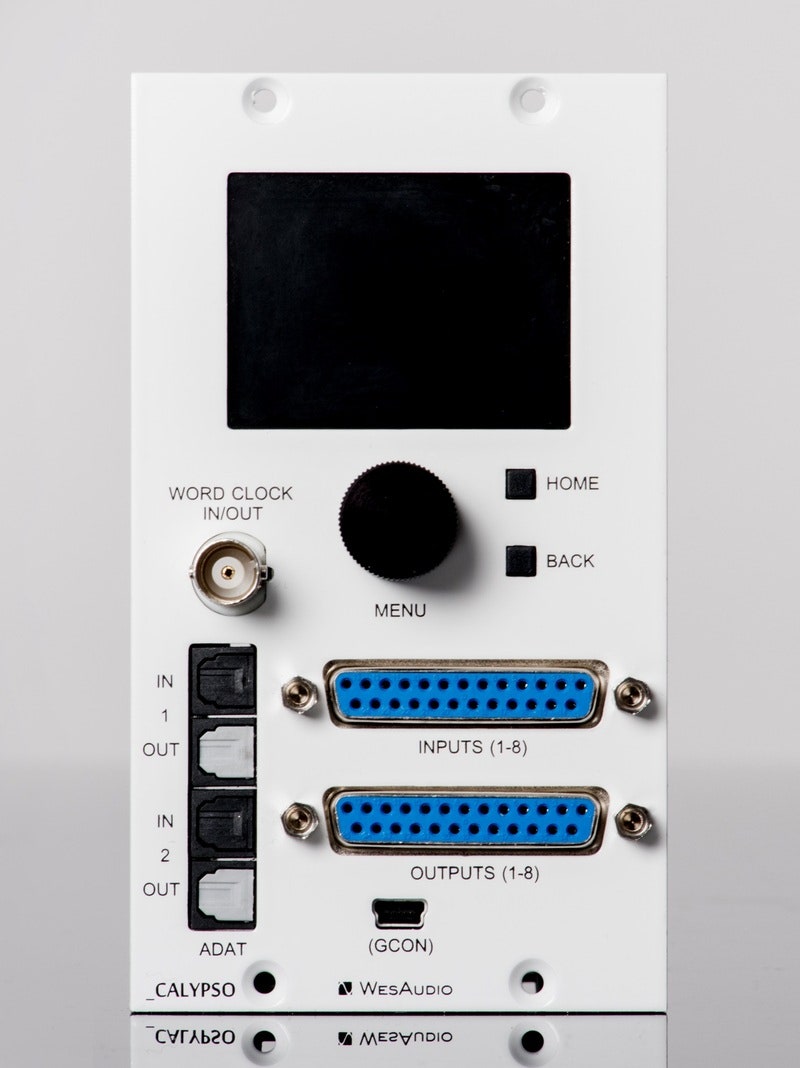

CALYPSO is an audio interface designed to work in 500 series enclosure. It features state of art 8 channels of AD/DA conversion and perfectly integrates with ng500 chassis – _TITAN, through I.A.C. connector. Besides its very convenient integration with ng500 chassis, it still can be used in standard 500 series enclosure using two DB25 connectors.
Features summary:
- 24bit conversion
- Supported sample rates: 44.1kHz, 48kHz, 88.2kHz(SMUX), 96kHz(SMUX)
- Ultra low jitter clock
- Word clock IN/OUT
- Full integration with _TITAN via IAC connector (Just ADAT cables are need to route all signal to and from chassis)
- Two DB25 connectors allows integration with any 500 series chassis
- Two converter reference levels +8dBu/-10dBV
- LCD screen with channel metering
Specification:
Power consumption: 150mA per rail
Dimensions : 76x133x158mm
Warranty: 2 years
Inputs(ADC):
Freq. response – 20Hz-20kHzm +/- 0.1dB
THD+N (unweighted): -108dB (0.0004%)
Dynamic range (unweighted): 116dB
Gain Settings: +4 dBu / –10 dBV (selectable per input)
Maximum Input Level: (+4 dBu) +20 dBu
Input Impedance: 10K Ohms
Connector type: DB25/IAC
Outputs(DAC):
Freq. response – 20Hz-20kHzm +/- 0.1dB
THD+N (unweighted): -105dB (0.0005%)
Dynamic range (unweighted): 115dB
Gain Settings: +4 dBu / –10 dBV (selectable per output)
Maximum Output level: (+4 dBu) +20dBu
Output Impedance: 100 Ohms
Connector type: DB25/IAC
