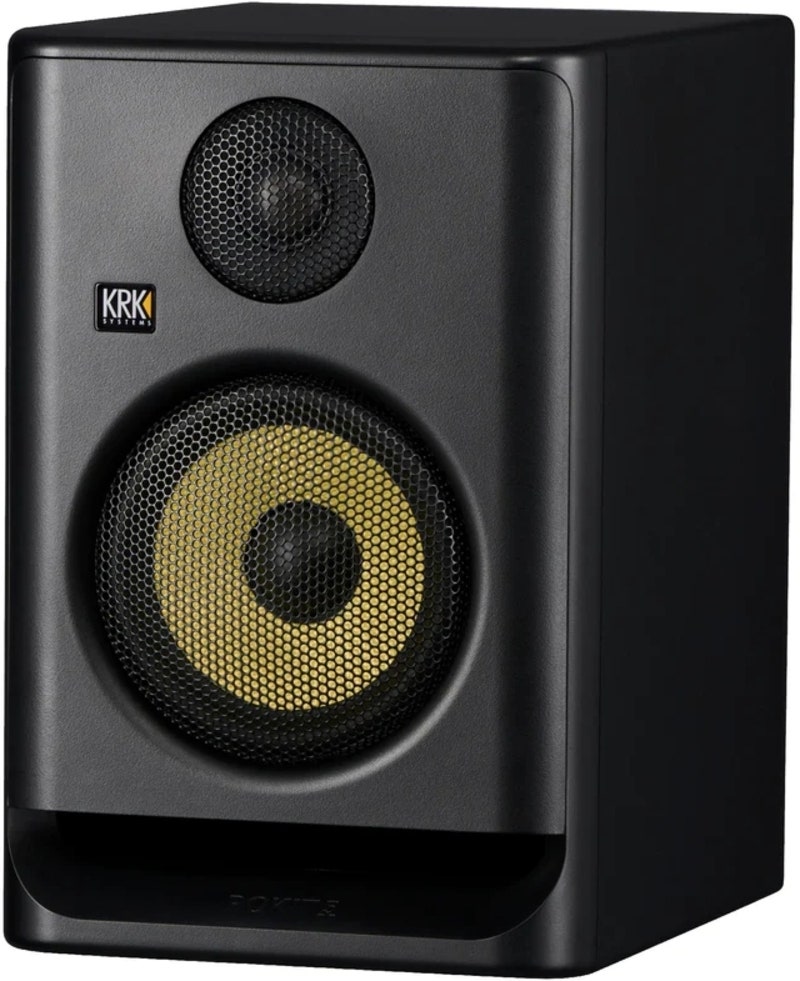

KRK Rokit 5 Generation Five
Tuotenumero 10847442-tie studiomonitori, 5” elementti, 1” diskanttielementti ja Class-D päätevahvistin
Elevate your audio production to new heights with KRK Systems’ Rokit Generation Five product line that caters to the diverse needs
of musicians, producers, and sound engineers worldwide. Whether you’re working on a chart-topping hit, a film score, or a personal
project, KRK Systems Rokit Generation Five monitors provide the tools you need to capture every nuance of your sound with
astonishing clarity. Rokit Generation Five has three very useful voicing modes. Mix Mode, with flat frequency and phase response, is
best for mixing, mastering, and critical listening. Create Mode is a more inspirational voicing best used for writing, producing, and
casual listening. Focus Mode is a mid-focused voicing for critical analysis of the midrange band where vocals and most instruments
have the most energy. They feature 25 boundary and tuning EQ combinations that help minimize and correct problems in your
acoustic environment and woven Kevlar® aramid fiber cone woofers for superior damping and modal breakup control. The tweeters
benefit from a highly damped acoustic silk dome diaphragm to smoothly extend the frequency range up to 40 kHz. For maximum
transient response and dynamics reproduction, bi-amplified Class D power amplifiers drive the transducers evenly and more
efficiently at reduced operating temperatures to ensure audio integrity during long work sessions.
Specifications
Configuration | 2-Way Bass Reflex |
System Type | Active Studio Monitor |
Low-Frequency Driver | Woofer, 5-inch, woven Kevlar® aramid fiber cone, ferrite magnet |
High-Frequency Driver | Tweeter, 1-inch, Silk Dome, Copper Cap, ferrite magnet |
Frequency Response (+/- 3 dB) | 54 Hz – 30 kHz |
Frequency Range (+3/-10 dB) | 43 Hz – 40 kHz |
Crossover Frequency | 2.27 kHz |
Amplifier Configuration | Bi-amplified (Class D) |
HF Amp Power Output* | 20 Watts |
LF Amp Power Output* | 35 Watts |
Total Power* | 55 Watts |
Total Dynamic Power Output** | 130 Watts |
Max SPL*** | 104 dB |
155° Horizontal x 126° Vertical | |
Analog Input Connector | Balanced XLR / 1/4” TRS Combo |
Input Impedance | 5.12kΩ Balanced |
SNR (Signal to Noise Ratio) | >101.5 dB (Low Sensitivity setting, balanced), >94 dB (High Sensitivity, unbalanced) |
AC Input Voltage | 100 – 240VAC (+/- 10%), 50/60 Hz |
Fuse Type | 5x20 mm T1A 250V |
Enclosure Construction | PVC Vinyl Wrapped MDF |
Baffle Construction | Structurally Reinforced High Impact Polystyrene |
Product Dimensions (H x W x D) | 11.34” (288 mm) x 7.52” (191 mm) x 9.53” (242 mm) |
Packaged Dimensions (H x W x D) | 15.75” (400 mm) x 10.24” (260 mm) x 12.6” (320 mm) |
Product Weight | 10.91 lbs. (4.95 Kg.) |
Packaged Weight | 14.33 lbs. (6.5 Kg.) |
