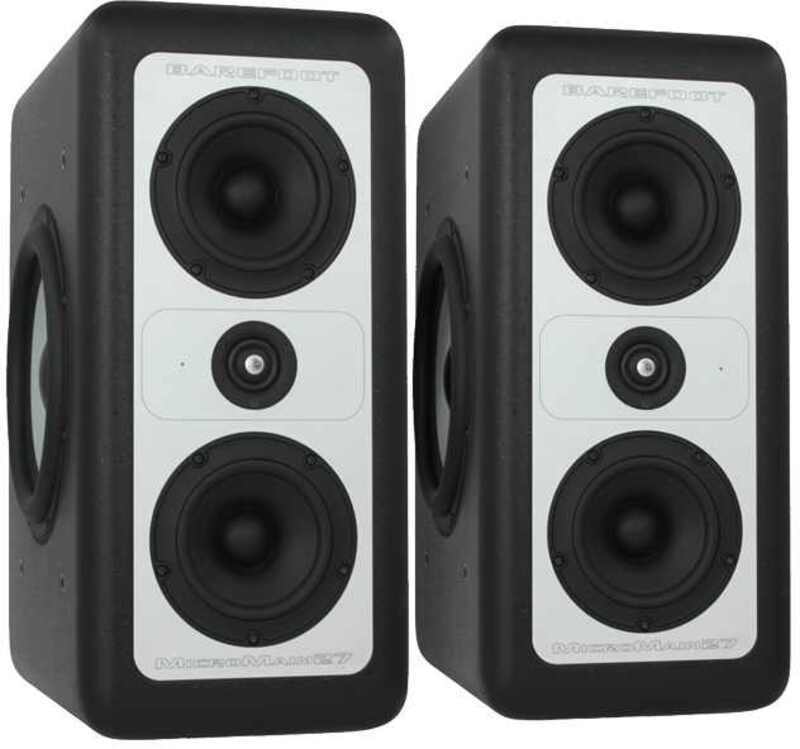

Barefoot MicroMain27 Gen2

Specification:

• 3.5-way active studio monitor with integral subwoofers and MEME™ Technology
• Four-setting DSP voice emulation
• Analog and AES3 digital inputs
• Hypex amplification
• Controls: Analog/AES3 input select, AES3 L/R channels select, Input level stepped attenuator, Subwoofer level, Emulation voice select
• Input Impedence: 50k Ohm
• Frequency Response: 30Hz – 45kHz (±3dB), 40Hz – 40kHz (±1dB)
• Bass Response: -3 dB @ 30Hz, Q = 0.707  Slope = 12 dB/octave
• Cabinet: 32 liters total internal volume, Sealed subwoofer and midbass enclosures, Machined aluminum baffle plate, Aluminum subwoofer frames function as lateral cabinet bracing, Long fiber wool acoustic damping throughout
• Tweeter: 1″ ring radiator, Advanced geometry motor, Rear waveguide chamber. Amplifier: 250W Hypex
• Midbass 1 – 5.25″ poly/paper cone with Advanced neodymium motor , with +/- 5 mm linear excursion. Amplifier: 250W Hypex
• Midbass 2 – 5.25″ poly/paper cone with Advanced neodymium motor, with +/- 5 mm linear excursion. Amplifier: 250W Hypex
• Subwoofers – 2 x 10″ aluminum cone with high linearity motor, with +/- 13 mm linear excursion. Amplifier: 500W Hypex
• Crossover Frequencies: 100 / 600 / 3000 Hz
• Cabinet Dimensions: 20.5″ x 9.5″ x 15.5″
• Overall Dimensions: 20.5″ x 10.4″ x. 17.4″
• AC Power Input: Nominal 115 VAC or 230 VAC selectable
• Power Consumption:  Idle: 30W, Maximum: 650W
• Weight: Speaker: 68 lbs each (31 kg)
• Shipping: 80 lbs each (36 kg)
