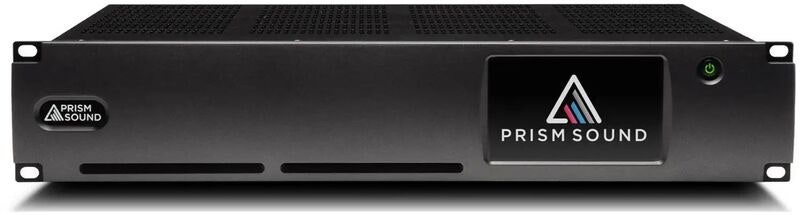

Prism Dream Series ADA-128 Chassis with HDX
Tuotenumero 1081460ADA-128 Mainframe chassis with Preinstalled HDX Card. Each chassis can be configured with a max of 4 digital 'host' cards and 16 Analogue I/O cards. AES cards can be installed in any slot. Max 20 cards.
The Dream ADA-128 is a 2U chassis that can accommodate up to 20 plug-in Modules. These presently include eight-channel analogue input and output Modules and an eight-channel AES3 Module. Four of the slots can accommodate a range of 64-channel Host Modules which include Pro Tools HDX and Dante Host Modules (and more to come). As well as being able to route analogue and AES3 I/O to and from Host media, full routing flexibility allows analogue to/from AES3 routing without use of Host slots, and Host-to-Host bridging.
The Dream ADA-128 contains four independent clock generators, each of which can run at different sample rates and with different sync sources. The ADA-128’s Host and I/O Modules can be dynamically assigned to these Clock Domains, allowing multiple workflows (such as separate project studios or ingest stations) to simultaneously share the resources of a single ADA-128’s resources.
Every I/O Module, as well as the unit’s built-in Routing Module, have dedicated DSP capability, which will allow a wide range of future functionality to be added by a simple software download.
The Dream ADA-128 incorporates Prism Sound’s unique Verifile technology, wherein every ADC in the system can add imperceptible metadata to its dither signal, allowing downstream processes to check that every sample in a stream is exactly as it left the ADC. This reduces the need for expensive and unreliable listening tests of every minute of every digital recording or transmission.
These and many other unique capabilities make the Dream ADA-128 the only box you will ever need, no matter what your application.
