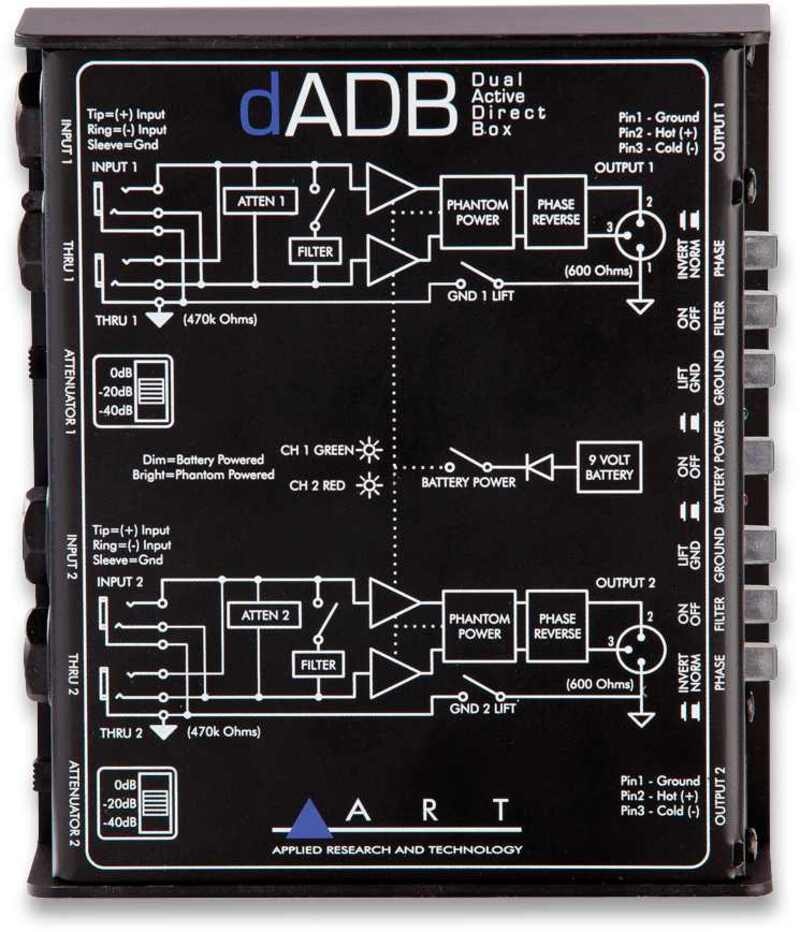

The ART dADB dual active direct box acts as two independent, high quality active interfaces for connecting instrument, line, or speaker level signals to balanced inputs. The high impedance ¼-inch inputs are buffered and converted by extremely low noise active electronics to deliver isolated, balanced, low impedance outputs.
Key Features
- Fully Active Design
- Operates on Phantom Power or 9V Battery
- Converts High-Impedance Balanced / Unbalanced Inputs Into 600 ohm Balanced Outputs
- Switchable Input Attenuation (0, -20, -40 dB)
- Independently Switchable Low Pass Filter on each Channel
- Independently Switchable Phase Invert on each Channel
- Independently Switchable Ground Lift on each Channel
- 1/4-inch TRS Connector Inputs and Thru Connections
- XLR Connectors for Balanced Outputs
- Rugged Steel Case
