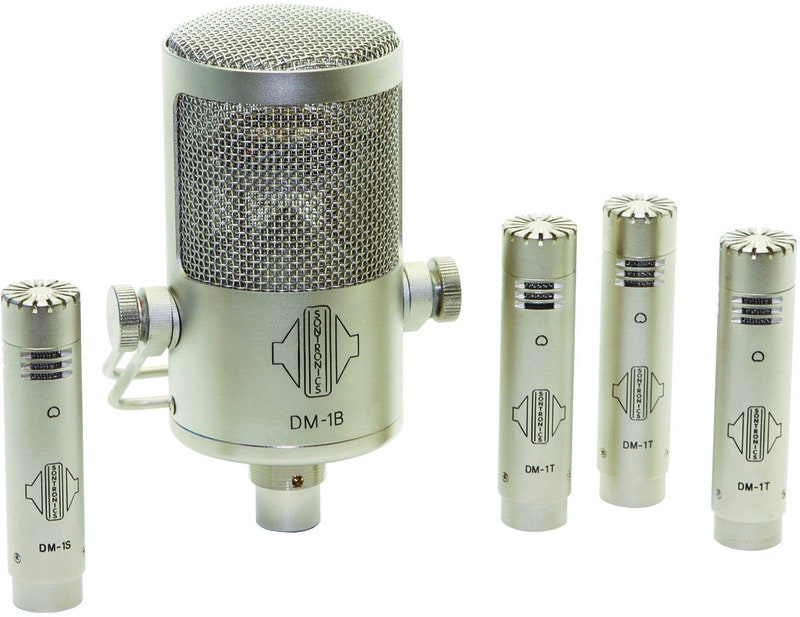

Sontronics Drumpack

DRUMPACK HIGHLIGHTS
• award-winning condenser mics
• designed specifically for drums
• all you need for recording full kit
• supplied with mic clips and rugged ABS fightcase
• all microphones covered by Sontronics LIFETIME WARRANTY

RECOMMENDED FOR…
• drumkit and percussion
• DM-1B: kick drum, orchestral bass drum, bass guitar cabinet, low brass and woodwind, tenor/baritone sax, male vocals
• DM-1S: snare drum, cajon, djembe
• DM-1T: tom toms, bongos, congas

SPECIFICATIONS
Polar pattern (all mics): Cardioid

• Pad: 0/-15dB (DM-1B), 0/-10dB (DM-1S, DM-1T)
• Filter (STC-10 only): Linear/75Hz
• Freq. response: 20Hz - 20kHz (DM-1B), 30Hz - 20kHz (DM-1S & 1T)
• Sensitivity: 6mV/Pa -45dB ±2dB (DM-1B), 8mV/Pa -42dB ±2dB (DM-1S & 1T)
• Impedance (all mics): ≤200 Ohms
• Equivalent noise level (A-weighted): 14dB (DM-1B, 1S & 1T)
• Max. SPL*: 155dB (DM-1B), 135dB (DM-1S & 1T)
• Power sources (all mics): 48V ±4V phantom power required
• Connector (all mics): 3-pin XLR
• Dimensions: 144 x 72 x 72mm (DM-1B), 91 x 22 x 22mm (DM-1S & 1T)
• Weight: 829g (DM-1B), 86g (DM-1S & 1T)
• Supplied with: 4 Mic clips, ABS flightcase
  *Max. SPL for 0.5% THD @ 1kHz
