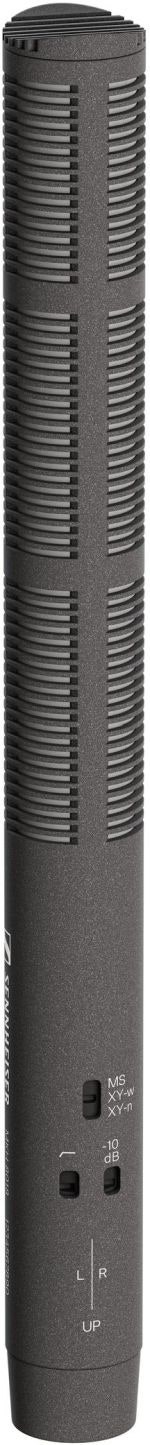

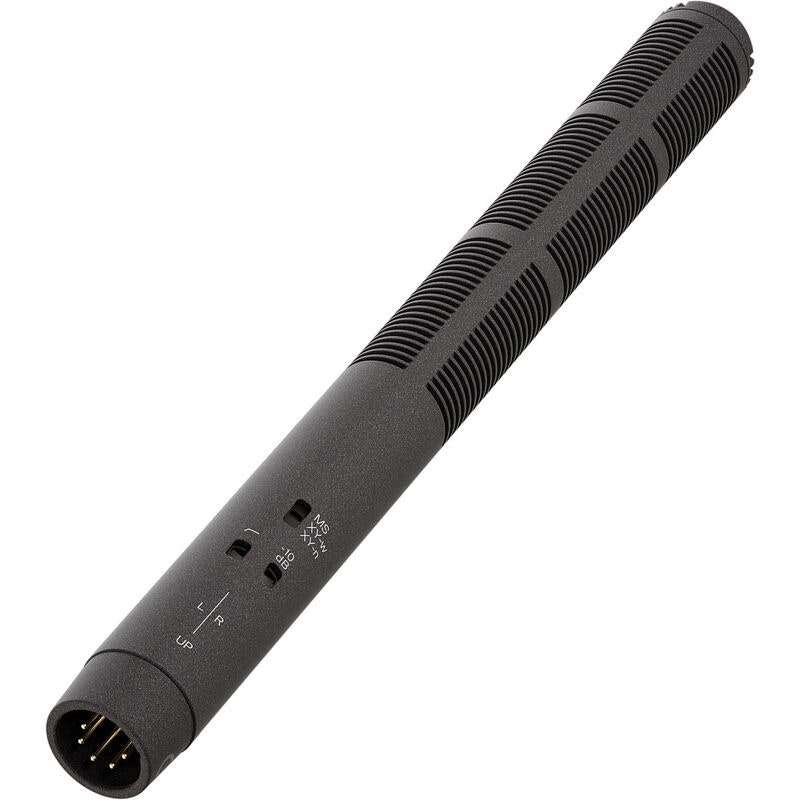

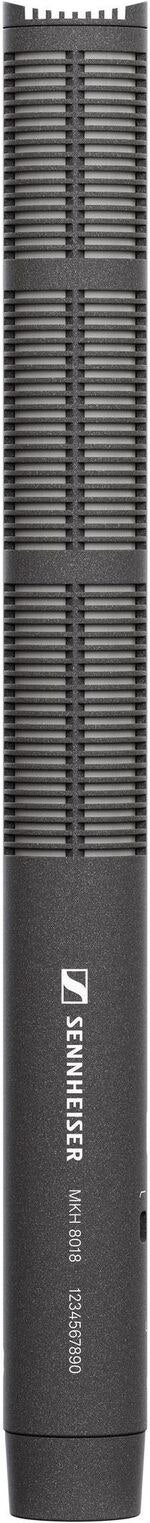

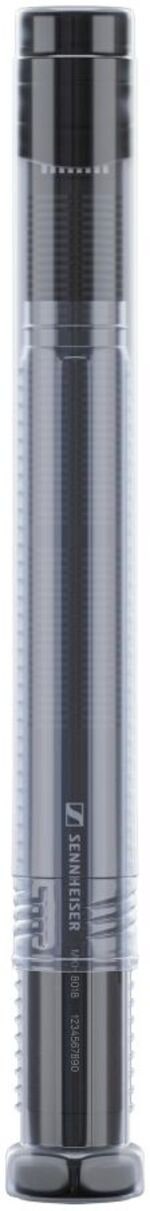

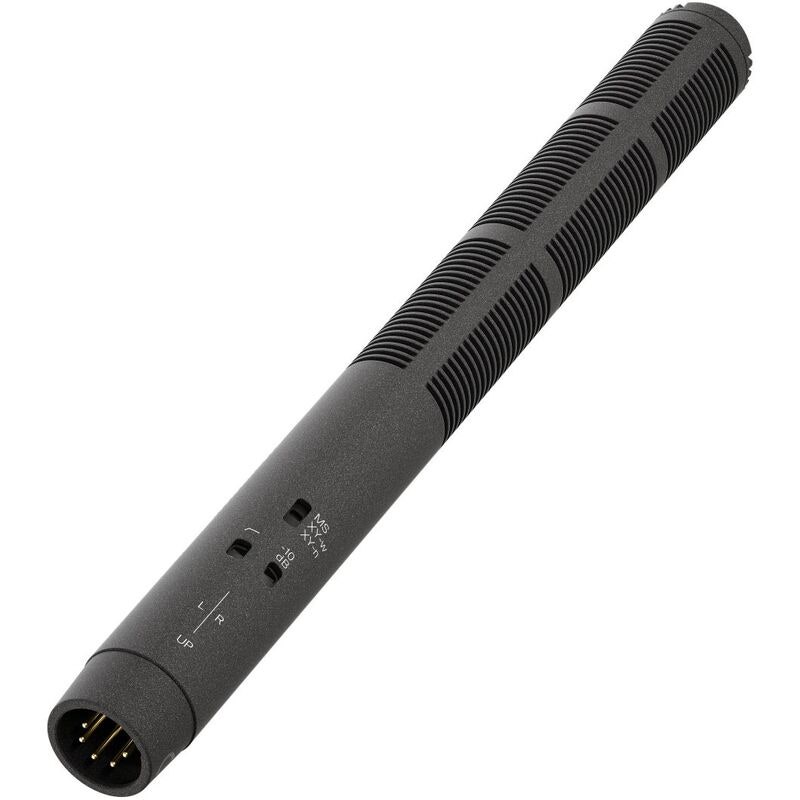

Sennheiser MKH 8018

Sennheiser MKH 8018

The Sennheiser MKH 8018 is a stereo shotgun RF condenser microphone that delivers a sense of directionality and spatial realism. The unique push-pull transducer combined with a low-voltage diaphragm provides sensitivity and a wide frequency response, enabling authentic sound recording in any environment.

Three selectable recording modes for maximum flexibility

The MKH 8018 offers three different recording modes to adapt the audio recording to your needs:

• MS mode (Mid-Side) – Provides separate mid and side signals, allowing you to adjust the stereo image in post-production or directly in the field with a matrix mixer.
• XY-narrow – Internally mixed stereo image that provides a more focused sound recording without the need for external mixing.
• XY-wide – A wider stereo image that captures more ambient sound, perfect for creating a natural sound environment.

Key Features

• Stereo shotgun configuration for an impressive combination of directionality and spatial realism.
• Three switchable stereo modes: MS, XY-narrow and XY-wide.
• Ideal for film and video production where a precisely directional sound image is required, such as for dialogue recordings, sports events or nature sounds.
• Low-cut filter (-3 dB at 70 Hz) to reduce wind and handling noise.
• -10 dB attenuation to avoid clipping at high sound levels.
• Compact design makes it perfect for camera mounting.
• Matched timbre with other microphones in the MKH 8000 series for a consistent sound image.
• Fully balanced output minimizes distortion and allows for flexible connection.
• Symmetrical push-pull transducer with open acoustic system for unsurpassed sound quality without coloration of the sound.
• Extended bass range allows for a wider frequency response and greater freedom in microphone placement.

RF technology for superior sound quality

By integrating RF technology into a wired microphone design, the MKH 8000 series offers unique advantages:

• The push-pull transducer is symmetrical and acoustically open, eliminating interference and ensuring an accurate polar response without coloration of the sound.
• Low-tension diaphragm provides high sensitivity and a wide frequency range, enabling a natural and detailed sound image.
• Extended bass and treble range – the microphone reproduces low frequencies more naturally and captures details in the treble range up to 50 kHz.
• High efficiency and low self-noise level – conventional condenser microphones require acoustic damping in the midrange, which reduces efficiency. The MKH 8000's free-vibrating diaphragm eliminates this need, providing a natural and dynamic sound.
• Clean and consistent sound image without coloration – no internal filters are required, ensuring the sound remains natural and unchanged.
• Low distortion – prevents unwanted frequencies and preserves the clarity of the sound.

The series combines the legendary clarity of Sennheiser RF condenser microphones with a subtle and natural warmth. Perfect for broadcast, field recording and music production. Voices become rich and detailed, while instruments such as piano, strings and wind instruments gain a unique character. Percussive instruments also gain a fast attack and dynamic response.

Built for tough environments

The MKH 8000 series is characterized by Sennheiser’s robust build quality, with a durable metal housing and durable construction. Perfect for outdoor recording in demanding environments.

• Resistance to moisture and extreme temperatures – the permanent RF current through the capsule naturally removes moisture, making the microphone ideal for use in humid environments.
• Low impedance – ensures functionality even in extreme climatic conditions.
• Compact size – easy to transport and mount.
