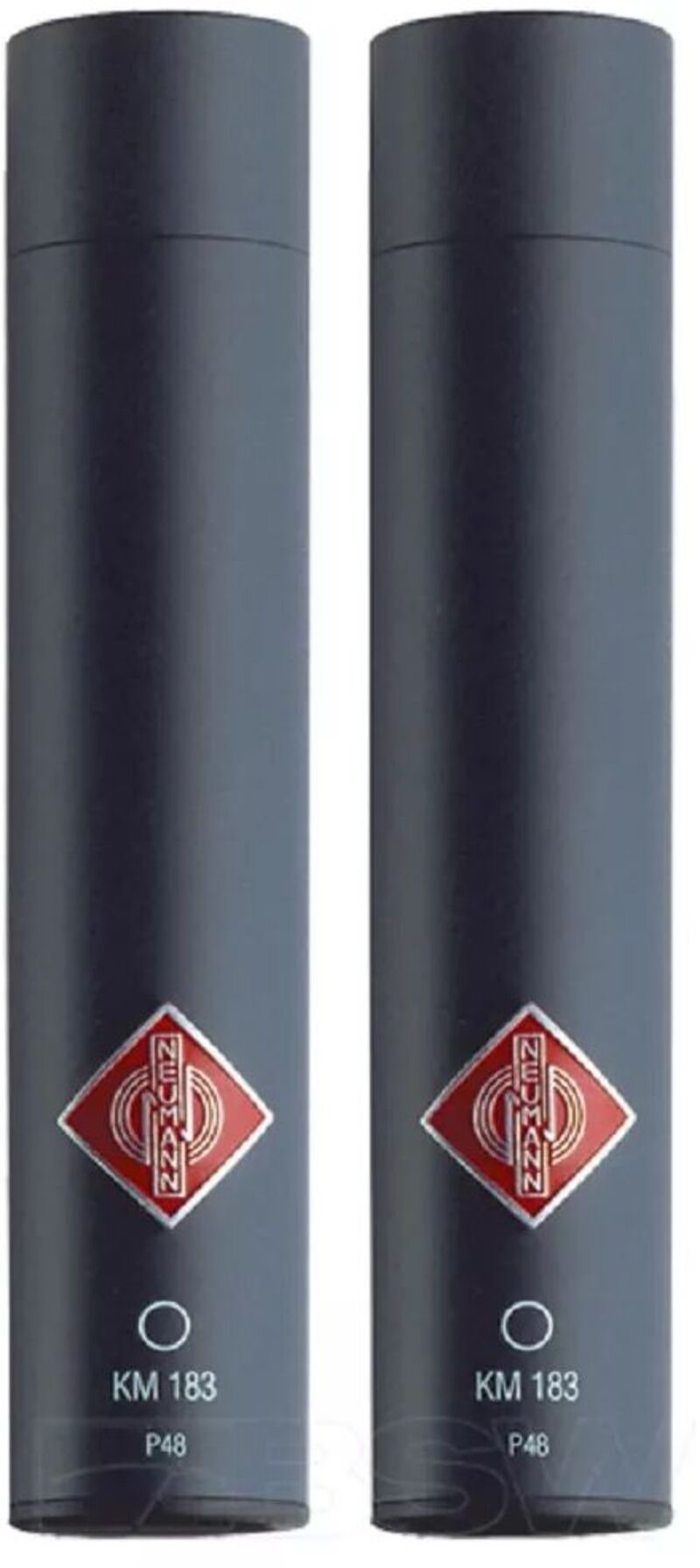

Neumann KM183MT Stereo Set

Acoustical operating principle  Pressure transducer
Directional pattern  omnidirectional

• Frequency range  20 Hz ... 20 kHz
• Sensitivity at 1 kHz into 1 kohm  12 mV/Pa
• Rated impedance  50 ohms
• Rated load impedance  1 kohms
• Equivalent noise level, CCIR1)  24dB
• Equivalent noise level, A-weighted1)  13dB-A
• Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)  70dB
• Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL)  81dB
• Maximum SPL for THD 0.5%2)  140dB
• Maximum output voltage  10 dBu
• Supply voltage (P48, IEC 61938)  48 V ± 4 V
• Current consumption (P48, IEC 61938)  3.2 mA
• Matching connectors  XLR 3F
• Weight  approx. 80 g
• Diameter  22 mm
• Length  107 mm
