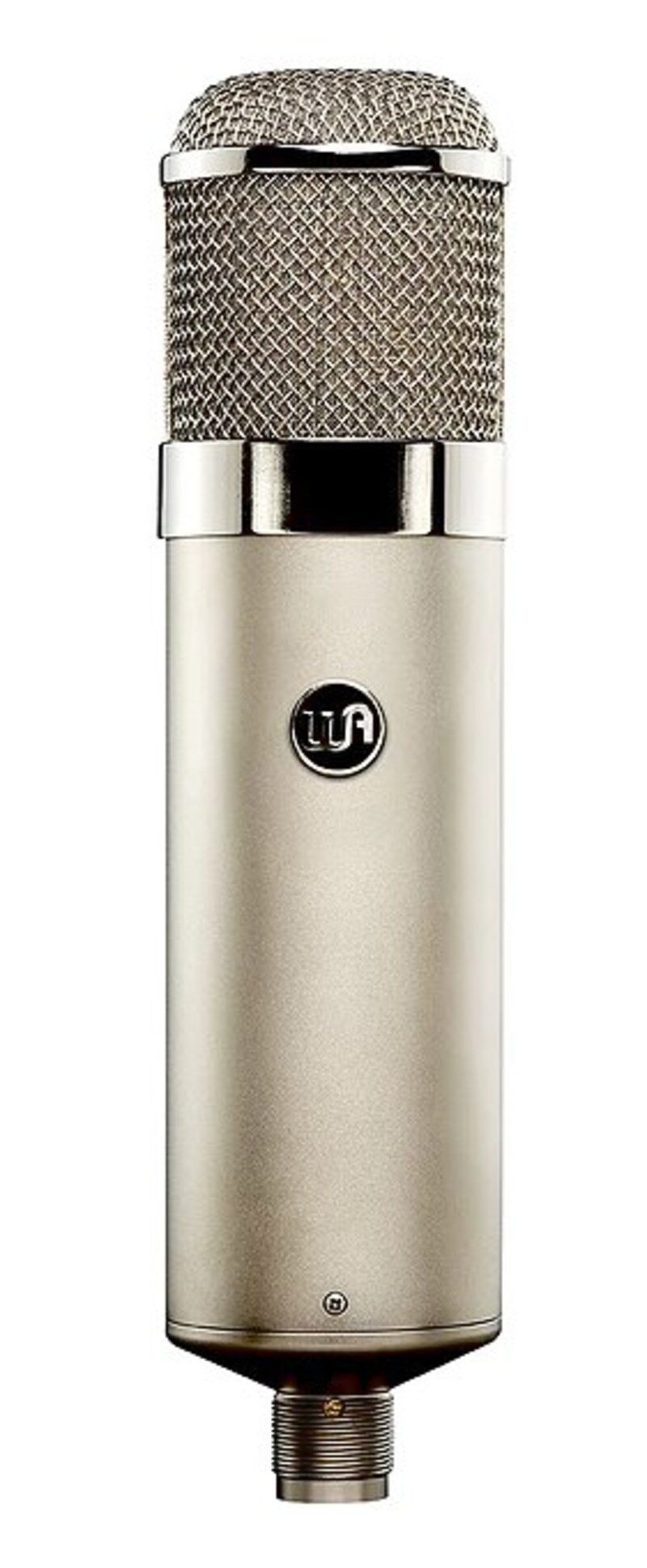

Warm Audio WA-47

The WA-47 is an all vacuum tube, large diaphragm, transformer balanced, multi-pattern (9), large condenser microphone, based on the classic ‘47 that has been used on countless hit records for the last 50+ years.

• Custom true '47 style capsule reproduction (k47) - Model# WA-47-B-80v
• TAB-Funkenwerk (AMI) USA output transformer
• JJ Slovak 5751 vacuum tube
• Gotham 3 meter GAC-7, 7-pin tube microphone cable
• Wima, Solen French, and Polystyrene capacitors
• Polar Patterns: 9 patterns - Cardioid, Omni, figure-of-eight + 6 mixed patterns
• Self-noise: 11dBA
• Dynamic range: 130dBA
• Maximum SPL: 140dB  (<0.5% THD)
• Frequency Range: 20 Hz~20 kHz
• Output Impedance: 200 ohms
• Rated Load Impedance: ≥2kOhms
• S/N Ratio: 82dBA
• Equivalent Noise: 10dBA (IEC651)
• External IEC grounded PSU
• Includes: Microphone, Wood box, PSU, Shockmount, Gotham 7 pin GAC-7 cable, IEC power cable
• Total Weight - 9 lbs
• Mic Diameter: 90mm
• Mic Length: 254mm
