Neumann U89 i mt

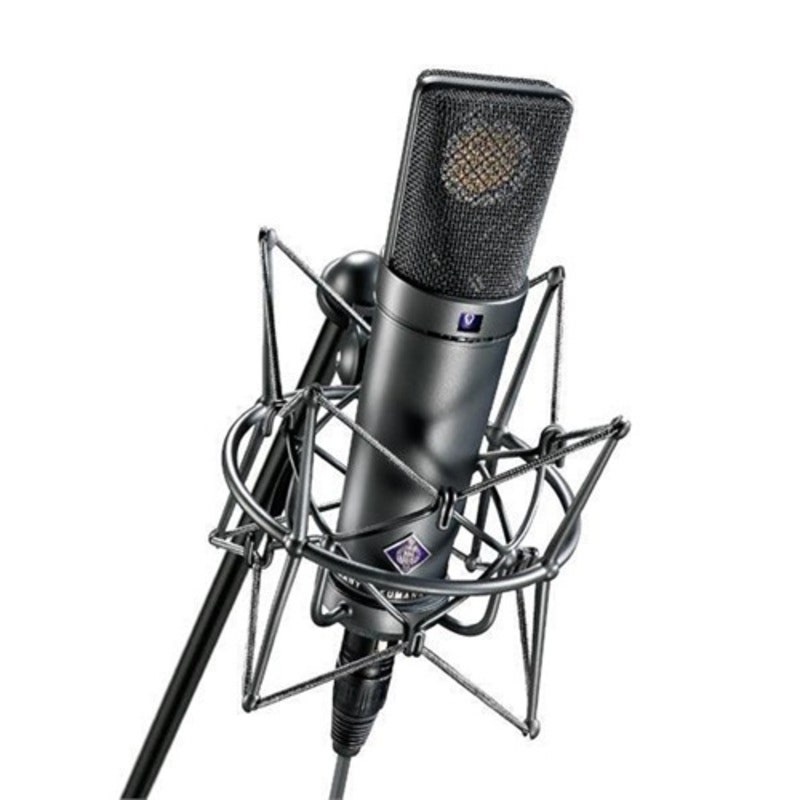

The U 89 is a studio microphone for universal applications. The headgrille protects a dual-diaphragm capsule. A rotary switch below the headgrille selects from five different polar patterns. Therefore the microphone can be adapted easily to large-surfaced or wide sound sources, or to sound sources to be recorded at a greater distance.

The maximum sound pressure level of 134 dB can be increased to 140 dB with a rotary switch. Another rotary switch is provided for lowering the transmission distance below the selectable frequencies 80 Hz or 160 Hz.

In addition to the usual directional polar patterns: omnidirectional, cardioid, and figure-8, we have added a hypercardioid and wide-angle cardioid characteristic. When compared to the standard cardioid pattern, the hypercardioid characteristic suppresses sound from the side more efficiently. The wide-angle polar pattern is especially useful when recording large sound sources.

• Polar pattern: Switchable between omnidirectional, cardioid, figure-8
• Switchable 10 db attenuation
• Universally applicable: Vocals, speakers, overheads, wind instruments
• Transmission range 20 Hz ... 20 kHz
• Field transfer factor at 1 kHz at 1 kOhm 8 mV / Pa
• Nominal impedance: 150 Ohm
• Nominal load impedance: 1000 Ohm
• Replacement noise level (CCIR 468-3): 28 dB
• Spare noise level (DIN / IEC 651): 17 dB-A
• Noise level difference (CCIR 468-3): 66 dB
• Noise level difference (DIN / IEC 651): 77 dB
• Boundary sound pressure level for K <0.5%: 134 dB
• Boundary sound pressure level for K <0.5% with pre-attenuation: 140 dB
• Maximum output voltage: 800 mV
• Dynamic range of the amplifier (DIN / IEC 651): 117 dB
• Supply voltage: 48 V ± 4 V
• Current consumption: 0.8 mA
• Weight: 400 g
• Diameter: 46 mm / Length: 185 mm
• Colour: Matte black
