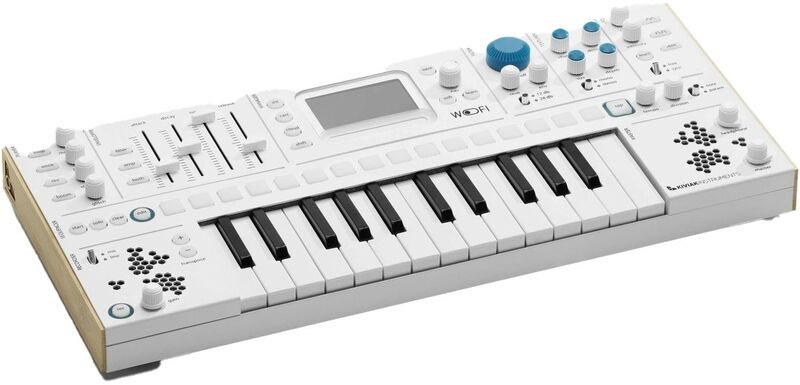

Kiviak Instruments WoFi

Player

- 48kHz 16 bits
- Direct streaming from flash, no preloading
- Polyphony 10 voices

Recorder

- 48kHz 16 bits mono
- Line / dynamic microphone / integrated microphone
- Gain adjust -6dB + 22dB
- Eurorack level compliant

Memory

- Flash embedded memory : 100 MBytes
- Flash cartridge memory : 100 MBytes
- Up to 200 User Patchs + 50 Presets

100 MBytes allow storing 18 minutes of audio

Sequencer

- 16 steps track for notes
- 16 keys track for parameters sequencing

DSP

- Real time processing (No Preprocessing)
- Interpolation modes: sample & hold, linear, whittaker-shannon
- Pitch shift
- Time stretch
- Bit crusher
- Texturer
- Machine rendering emulation
- Resonant state variable filter (12dB/o-24dB/o)
- Parameter modulation from different sources : enveloppe, LFO, sequencer automations, external modulation (CV/MIDI), after touch, touch strip
- Texturer: self mixing renderer based on granular sampling – 8 grains – multi tap harmonizer

File servicing

- Direct file system management through USB
- Embedded sample editor

Network

- WIFI connectivity, up to 16 key pass
- Cloud access: Patch / Sample upload and download, sharing or backup.

Connectivity

- Sync clock + start/stop
- CV input, Gate input
- CV output, modulation output, gate output
- MIDI in, out, through DIN+USB
- Line In, Line out, Headphones

Miscellaneous

- USB powered
- Embbeded battery - roughly 4h autonomy
- Integrated Microphone
- Integrated Speaker
- Full backup to Cartridge or mywo.fi
- User friendly workflow

Physicals

- Aluminium / wood body
- Dimensions: 52cm x 23cm x 7cm
- Height TBD
