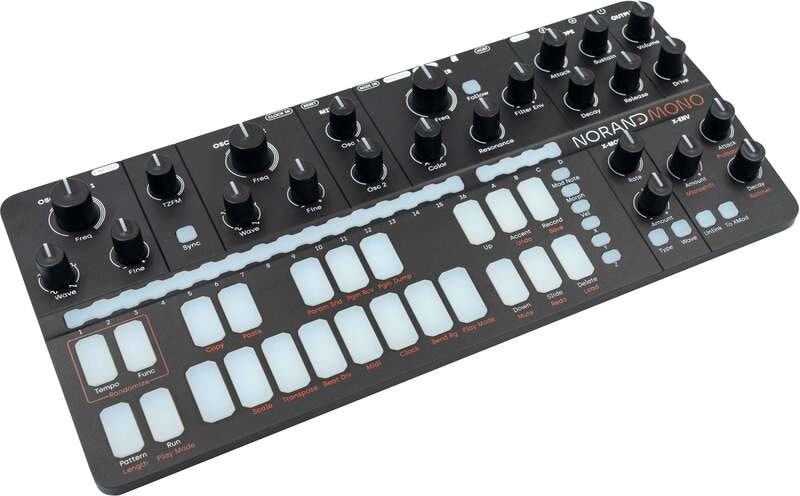

Norand Mono MK2

Synth Voice Features

• Fully analog signal path
• 2x analog oscillators
• Continuously variable waveform
• Thru-zero frequency modulation
• Hard Sync
• Filter Overdrive
• 1x 3-pole multimode filter
• Continuously variable filter color
• 1x main ADSR envelope
• Soft Overdrive

Modulation Features

• Controls: 13x dedicated AD envelopes 20x dedicated modulator
• Modulator: 5 waveforms, type settings: Free/Synced/Audio Rate, Audio-Rate anti-aliased, quantized to OSC1, Free from 0.1 to 80 seconds
• Envelope: Attack-Decay segment from 10 us to 20 s

Sequencer

• Up to 64 steps per pattern
• 1024 PPQN automations
• Individual length/scale/beat division per pattern
• Individual microshift/ratchet/probability per step
• Swing/Slide/Accent
• Copy/Paste everything
• Undo/Redo anything
• Mod Note Mode
• Fast, clock-independent project load/save

Randomizer

• Quantized note randomizer
• Ranged parameter automation randomizer
• Step randomizer
• Mod note randomizer
• Microshift/Probability/Ratchet randomizer

Memory Storage

• Unlimited projects on SD card
• 64 patterns with patch memory per project
• Unlimited parameter automation per Pattern
• 40 mod notes per project

Hardware

• 23x backlit RGB Potentiometers
• 24x illuminated silent mechanical switches
• 23x 808-style switches
• MIDI In/Out/Thru
• 1x 1/4" balanced main audio output
• 2x 1/8" eurorack clock/reset input
• Flash EEPROM upgradeable OS
• MIDI device USB-C port
• MIDI host USB-C port

Outputs

• Stereo audio outputs: Output level: +15 dBu maximum, output impedance: 200 ohms, headphones up to 80 ohms

Electrical Specification

• Unit consumption: 7 W typical
• Low power mode for USB power
• High quality power supply included
• Recommended power supply: 5 V DC, 2 A

Physical Specifications

• Machined aluminum front panel
• Machined aluminum back panel
• Dimensions: 350 x 150 x 35 mm

Weight: Approx. 1,6 kg

Included:

• Mono MK2
• Power supply
• 3 x MIDI adapter male 3.5mm TRS (type A) to female 5-pin DIN
• Quick start guide
