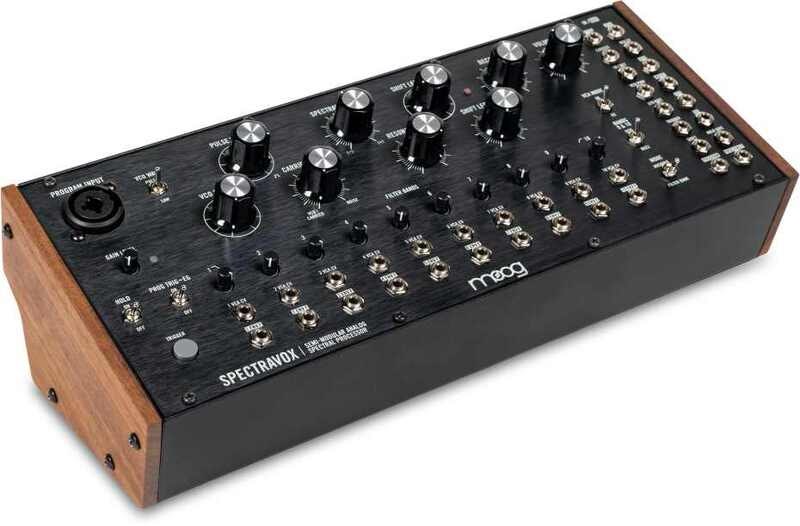

Moog Spectravox
Tuotenumero 1084892Spectravox, the newest member of the Moog semi-modular family, is a groundbreaking tool for sculpting sound.
An analog spectral processor based around a 10-band filter bank, Spectravox creates lively drones and colorful tonal sweeps on its own and adds resonant depth and psychedelic spectral movement to any external sound. Hook up a microphone and Spectravox becomes a 10-band analog vocoder with innovative integrated modulation of all of its filters. An exploration and expansion of the topology of the vocoder and filter bank, Spectravox is a highly flexible instrument and signal processor with a comprehensive patch bay for integration into studios of all sizes.
ANALOG SOUND ENGINE
- SOURCES: VCO, White Noise Generator
- FILTER: 10x variable resonance voltage-controlled filters: 1 Low-Pass Filter, 8 Bandpass Filters, 1 High-pass Filters
- ENVELOPES: VCA EG (Decay)
ANALYSIS ENGINE SOURCES
Ext. Input via 1/4" / XLR combo jack or 3.5mm jack with preamplifier. XLR input supports dynamic mics. Condenser mics may require external 48V power.
PATCHBAY
- JACKS: 36 x 3.5mm
- INPUTS: 19 Input Jacks
- OUTPUTS: 17 Output Jacks
REAR PANEL
- AUDIO: 1⁄4” TRS Headphone or 1⁄4” TS Instrument
- POWER: Power supply connection
- SECURITY: Kensington lock slot
POWER SUPPLY (INCLUDED)
- STYLE: Wall adapter; barrel connection; center-pin positive
- INPUT: 100 – 240VAC; 50 Hz – 60 Hz
- OUTPUT: +12VDC; 2.0A
EURORACK SPECS
- CURRENT DRAW: 450mA (maximum) from +12VDC (10-pin header) - MOUNTING DIMS: 60HP (1.5” Module Depth)
IN THE BOX
- Spectravox Analog Synthesizer
- Power Supply
- Quickstart Guide
- Product Poster
- Preset Overlays Patch Cables (5x 12”)
