Moog Muse

Tuotenumero 1086267

Analog synth, 61 keys, 8 voices, 44 knobs, 16 sliders, 129 buttons, two oscillators, 64-step sequencer, incl: IEC cable

2024-11-30

Maksa heti, laskulla tai osamaksulla - Tallenna kortti ja pankkitili - Helppo ja turvallinen - Klarnan ostajan suoja

€3590,00/kpl

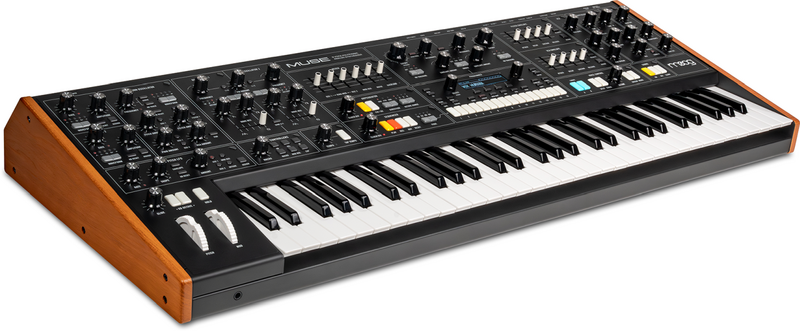

Meet Muse, an eight-tube analog polyphonic synthesizer – the result of five years of passionate work. Muse is an intuitive and powerful instrument, built on Moog's rich history while looking to the future. This central part of your studio or stage is powered by eight analog voices, each with two oscillators, a modulation oscillator, dual filters and a stereo amplifier.

Muse is inspired by components such as Minimoog Voyager's oscillators, MF-102 Ring Modulator, CP3 Mixer, 902 VCA module and 904a filter. With 16 banks of 16 sounds each, you can explore many different possibilities. From pads and organic FM picks to leads and dark basses, there's something for everyone. The digital controls give you unlimited possibilities to shape your sound with powerful modulation options, customizable envelopes and flexible LFOs. Muse features a 61-key Fatar keyboard with velocity and aftertouch, a left-handed pitch and modulation control, and a programmable macro button. A hypnotic stereo delay effect also lets you create complex and fascinating soundscapes.

Full-size semi-weighted Fatar keybed with 61 keys with velocity and channel aftertouch
Diffusion Delay: a hypnotic stereo processor inspired by vintage golden era digital rack delays with diffuse multi-tap behavior
Dual analog VCOs per voice derived from Minimoog Voyager circuitry with wave mixing and programmable analog FM
Analog modulation oscillator per voice with pre-routed destinations that can be used at audio speed as a third audio oscillator
CP3 style saturation mixer per voice with Ring Mod, Noise and either clean or saturated mix
Dual discrete transistor stages VCF per voice with switchable routing configurations
Stereo discrete transistor VCA per voice based on the Moog 902 module
Dual ADSR envelopes per voice with variable curves, looping, velocity response and assignable to any destination
Two LFOs with unique waveforms, dedicated Pitch LFO and 16 per voice triggered random generators - all routed via 16 modulation slots per timbre, per patch
Bi-timbrality and Voice Control: two independent timbres per patch can be stacked or split across the keyboard
Advanced arpeggiator with rhythmic programming, extended patterns and generative behavior
Chord memory with programmable chord shapes per key
64-step sequencer with sequence chaining, parameter recording, probabilistic editing and much more
16 banks with 16 patches for a total of 256 patch memories. Muse ships with 224, leaving two banks reserved for user patches
16 banks of 16 sequences for a total of 256. Muse ships with 224, one designed for each of the factory patches with two sequence banks reserved for user sequences
Analog CV and clock inputs/outputs, sustain pedal input, expression pedal input

Manufacturer specs

SYNTHESIZER TYPE:	Polyphonic, Bi-timbral Analog Synthesizer
SOUND ENGINE:	Analog
POLYPHONY:	8 Voices
KEYBED:	61 full-size semi-weighted Fatar keybed with Velocity and channel Aftertouch
CONTROLLERS:	Pitch Wheel, Modulation Wheel, Macro Knob, Keyboard Octave switch, Hold switch, Sustain Pedal input, Expression Pedal input – all pedal functions are assignable
PANEL CONTROLS:	44 knobs, 16 sliders, 129 buttons – OLED screen
ANALOG VOLTAGE-CONTROLLED OSCILLATORS:	(x2) Selectable Triangle/Sawtooth mix, variable width Pulse wave, Octave (16’, 8’, 4’, 2’), Frequency (+/- 7 Semitones), Wave Mix (blends Triangle/Sawtooth with variable Pulse wave), FM routing and amount, Hard sync
ANALOG RING MODULATOR:	Ring modulation between Oscillators 1 and 2
ANALOG VOLTAGE-CONTROLLED MODULATION OSCILLATOR:	Selectable waveform (Sine, Sawtooth, Reverse Sawtooth, Square, Noise), Audio range toggle switch, Keyboard tracking, Keyboard reset, Unipolar switch, Pitch Modulation routing and amount, Filter Modulation routing and amount, Pulse Width Modulation routing and amount, VCA Modulation amount, Panning switch
ANALOG NOISE GENERATOR:	White noise
ANALOG VOLTAGE-CONTROLLED MIXER:	ANALOG VOLTAGE-CONTROLLED MIXER – Independent level control for OSC 1, OSC 2, RING, MOD OSC, and NOISE. Overall OVERLOAD control
ANALOG VOLTAGE-CONTROLLED FILTER:	(x2) Moog transistor ladder filters (1 with highpass/lowpass modes), Cutoff Frequency, Resonance, KB Tracking Amount, Envelope Amount, Linked Operation, Routing (Series, Parallel, Stereo) ENVELOPES – (x2) Attack, Decay, Sustain, Release, variable curves per stage, Multi-trig, Loop, Velocity
ANALOG VOLTAGE-CONTROLLED AMPLIFIER:	Volume per Timbre, Pan position per Timbre, Pan Spread per timbre
DIFFUSION DELAY:	Configurable stereo signal processor, Delay Time Left, Delay Time Right, Feedback, Character, Mix, analog bypass switches (to maintain 100% analog signal path)
OUTPUT SECTION:	Master Volume, Headphones Volume, Low Cut EQ LFO – (x2) Rate, Amplitude, Waveform selection (Triangle, Sawtooth, Square, Sample-and-Hold, User customizable), Keyboard Reset
PITCH LFO:	Rate, Ramp Down through Triangle to Ramp Up Shape control, One-Shot Envelope toggle, Keyboard Reset, Pitch Modulation routing and amount
GLIDE:	Selectable glide type (LCR, LCT, EXP), Glide amount
CLOCK:	Clock rate, Tap Tempo
ARPEGGIATOR:	Per-timbre with Clock Division, Octave range, Pattern, Direction, Gate time, Rhythmic programming, etc.
SEQUENCER:	64-step sequencer with Clock Division, Transport controls, Sequence chaining, Step editing, Modulation capabilities, and memory capacity of 16 banks of 16 sequences
PROGRAMMER:	Browser via OLED screen with 16 banks of 16 patches, Mod Map, Arpeggiator settings, Sequencer with per-step settings, Global settings, etc.
VOICE CONTROL:	Mono or poly voice count per timbre, Unison/Mono, Detune, Timbre editing, Voice stealing configuration
CHORD MEMORY:	Chord memory with per-key functionality
MOD MAP:	16 modulation slots per timbre per patch with controllers and mathematical transform functions
HEADPHONES:	Main Left, Main Right (¼" TRS)
PEDAL INPUTS:	Sustain, Expression (¼" TRS; Configurable through Mod Map or for use as ¼" TS CV inputs)
CONTROL VOLTAGE INPUTS:	CV IN 1, CV IN 2 (1/8” TS)
CONTROL VOLTAGE OUTPUTS:	CV OUT 1, CV OUT 2 (1/8” TS)
ANALOG CLOCK INPUT:	CLOCK IN (1/8” TS)
ANALOG CLOCK OUTPUT:	CLOCK OUT (1/8” TS)
MIDI:	5 Pin DIN MIDI IN, OUT, THRU; MIDI over USB
USB B:	USB-B connector for interfacing with a computer or other host MIDI device
USB A (HOST):	USB-A connector for connecting to other instruments with Muse as the MIDI host
STYLE:	IEC Cable
INPUT:	100 – 240VAC; 50 Hz – 60 Hz
WEIGHT:	14.55 (kg), 32 (lbs)
DIMENSIONS:	(W x D x H): 99 x 42 x 11 (cm), 39 x 17 x 4.5 (inches)

Included in the package: Moog Muse 8-Voice Polyphonic Analog Synthesizer, IEC cable, Quick Start Guide, Registration Card and manual.
