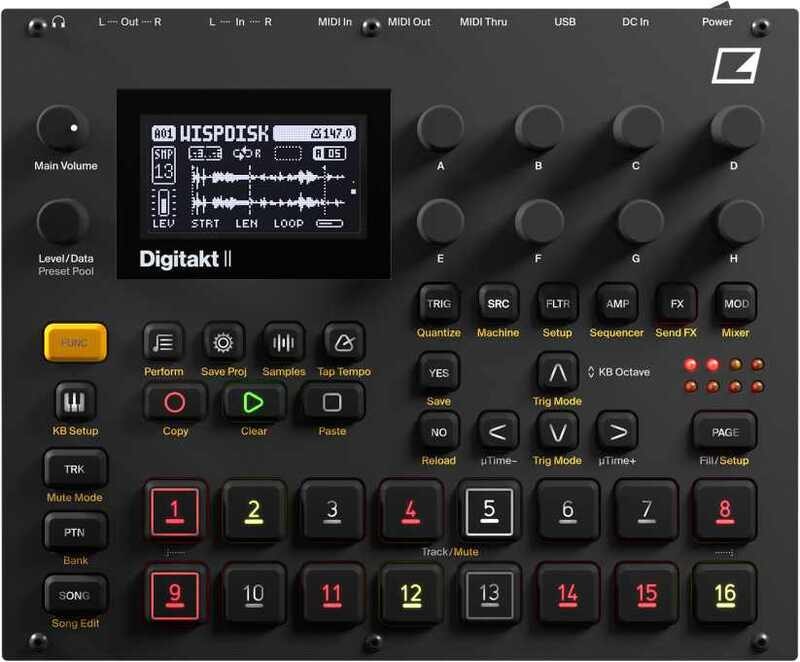

Elektron Digitakt II

Specifications:
Audio track features

• 16 × stereo or mono audio tracks, or MIDI tracks
• 5 × selectable SRC (audio) machines:

Oneshot
Warp
Stretch
Grid
RePitch

• 5 × selectable FLTR machines:

Multi-Mode
Lowpass 4
Equalizer
Comb
Legacy LP/HP

• 1 × digital base-width filter per track
• 1 × digital overdrive per track
• 1 × digital bit reduction
• 1 × digital sample rate reduction
• 1 × overdrive master effect
• 1 × stereo compressor master effect
• 3 × assignable LFOs per track
• 400 MB sample memory
• 20 GB+Drive storage
• Diverse sample library

MIDI track features

• 4 note polyphony per step
• 16 × assignable CC controls
• 2 × assignable LFOs per track

Performance features

• 4 × Trig modes

Tracks
Velocity
Retrigs (only works on audio tracks)
Preset pool (only works on audio tracks)

• Keyboard mode with 36 different scales
• Song Mode

Sequencer features

• 128 steps per pattern and track
• Individual pattern length per track
• Individual time scale multiplier per track
• Parameter locks
• Trig conditions & trig chance
• Retrig (audio tracks only)
• Micro timing
• 1 × Euclidean sequence generator per track

Send effects

• Saturator Delay
• Supervoid Reverb
• Panoramic Chorus

Hardware

• 128 × 64 pixel OLED screen
• 2 × ¼” impedance balanced audio out jacks
• 2 × ¼” impedance balanced audio in jacks
• 1 × ¼” stereo headphone jack
• 48 kHz, 24 bit D/A and A/D converters
• Hi Speed USB 2.0 port
• MIDI In/Out/Thru with DIN Sync out

Physical specifications

• Sturdy steel casing
• Dimensions: W 215 × D 176 × H 63 mm (8.5′′ × 6.9′′ × 2.5′′) (including knobs and feet)
• Weight: approximately 1.48 kg (3.25 lbs)
• 100 × 100 mm VESA mounting holes. Use M4 screws with a max length of 7 mm.

Miscellaneous

• Overbridge enabled
• Class Compliant USB Audio
• External Input mixer
• 3 year Elektron warranty

Included in the box

• Power Supply PSU-3c
• Elektron USB cable
• Exclusive artwork
