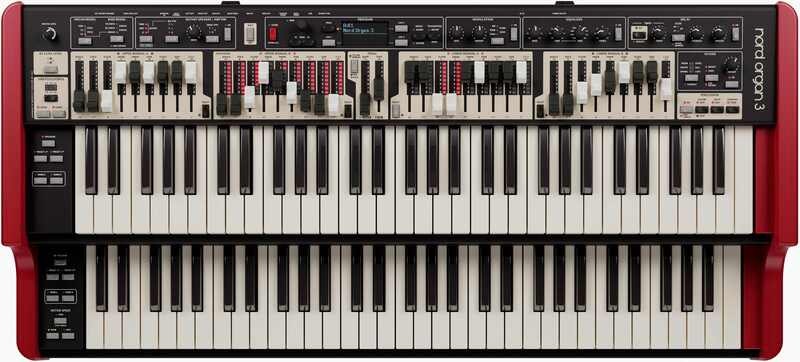

Nord Organ 3

Highlight features

General

• New panel design with OLED display
• Triple sensor keybeds
• LED indicators for preset drawbar settings
• Aux output with routing options for Bass/Pedal drawbars and more
• Per program Transpose function
• 11-pin Leslie connector
• High level output

B3 Organ

• Enhanced B3 organ model
• New and improved Chorus/Vibrato

Transistor Organs

• Improved Farfisa and Vox organ models

Rotary and Amp modeling

• Brand new Rotary Speaker emulation
• Multiple options for microphone placement
• 3 Drive Type options
• New British amp and speaker emulation
• Additional settings for Rotary Speaker

Pipe Organs

• Two distinct Pipe Organ emulations

Bass Models

• New Synth Bass options based on classic pedal synthesizers

Effects

• Brand new Spring reverb
• Expanded Reverb section with Pre-Rotary option
• Delay with new Analog mode and Feedback filters
• New Modulation effects including Phaser, Tremolo, Ring Mod, Flanger and Chorus.
• Equalizer with sweepable middle band

Connections

• Stereo Headphone Output - ¼", 6,35 mm stereo jack
• 2 Line Level Audio Outputs, L & R - ¼", 6,35 mm jacks, unbalanced
• 11-pin Leslie standard connector
• High Level Out ¼", 6,35 mm jack
• Aux Out ¼", 6,35 mm jack

• Monitor Input - 1/8", 3,5 mm stereo jack
• Sustain Pedal Input - ¼", 6,35 mm jack
• Rotor Control Input - ¼", 6,35 mm jack, Half-Moon Switch or momentary pedal
• Swell Pedal Input - ¼", 6,35 mm TRS stereo jack

• MIDI In - 5 pin DIN connector
• MIDI Out - 5 pin DIN connector
• Bass Pedal MIDI In - 5 pin DIN connector
• USB - type B connector
• IEC C14 power connector

Dimensions

985mm(38,8”) x 165mm (6,5”) x 446mm (17,6”)

Weight

17kg (37.5lbs)

Included Accessories

• User Manual
• Power cord
