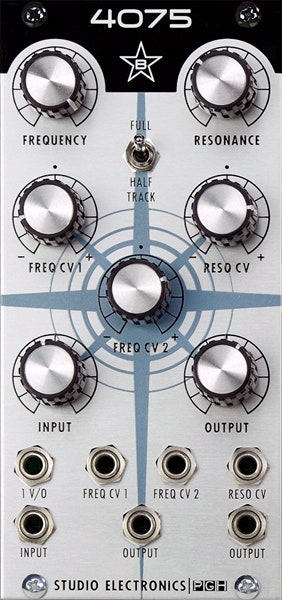

All Controls and Patch Points
- FREQUENCY – Adjusts the frequency, or cut-off of the filter.
- RESONANCE – Adjusts the resonance of the filter. *
- FULL HALF TRACK – Switch between full and half keyboard/voltage tracking.
- FREQ CV 1 – Frequency control voltage 1 input attenuverter.
- RESO CV – Resonance control voltage input attenuverter.
- FREQ CV 2 – Frequency control voltage 2 input attenuverter.
- INPUT – Adjusts the audio input.
- OUTPUT – Adjusts the audio output.
- 1 V/O – One volt per octave control voltage input.
- FREQ CV 1 – Frequency control voltage 1 input.
- FREQ CV 2 – Frequency control voltage 2 input.
- RESO CV – Resonance control voltage input.
- INPUT – Audio input.
- OUTPUT x2 – Audio outputs.
Vitals
- Size - 12hp
- Depth - 39.7mm with ribbon cable attached
- Power Usage - 27mA, 34mA (+12 / -12)
