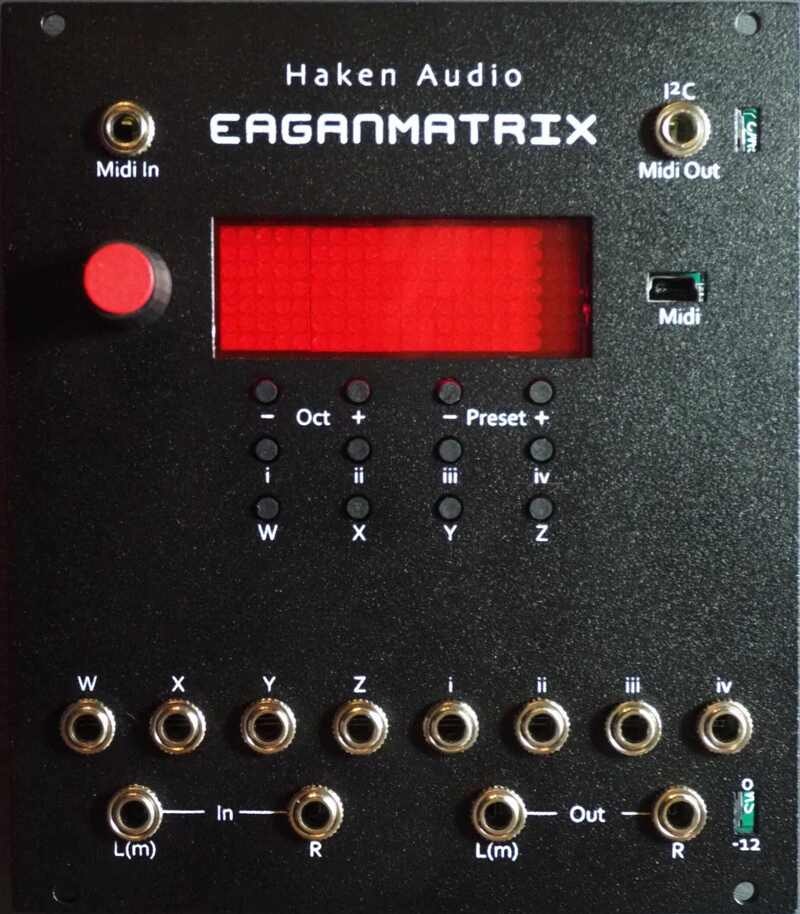

Haken Audio EaganMatrix Module
Tuotenumero 1082222The EaganMatrix Module is a full-featured EaganMatrix Sound Engine for Eurorack, and can be controlled by control voltages and/or Midi.
This versatile module can act as a sound source, a sound processor, a CV source (via connection to an external Control Voltage Converter), a Midi source, or a customizable combination of all these capabilities.
Haken Audio’s EaganMatrix Module offers:
-
Polyphony: Nominal 1, Maximum 8
Direct CV note control is limited to 1 voice at a time, but higher polyphony avoids voice stealing when EaganMatrix presets have long decays, and higher polyphony is often useful for Midi input. -
4 Per-note CV Inputs: W, X, Y, Z
-
Gate (W) — Triggers at 1V, with max range -10V to +10V
-
Pitch (X) — 1V per octave, with programmable offset for Middle C; useful input voltages are a subpart of -10V to +10V (depends on the programmable offset selected)
-
Timbre (Y) — Function depends on EaganMatrix preset; voltage range is normally 0V to 5V, but -5V to +5V can be useful when combined with a programmable offset
-
Loudness (Z) — normally 0V to 5V, but -5V to +5V can be useful when combined with a programmable offset
-
-
4 Global CV Inputs: i, ii, iii, iv
Functionality depends on EaganMatrix preset; these CV affect all voices (notes from WXYZ and Midi); each global CV is normally 0V to 5V, but -5V to +5V can be useful when combined with a programmable offset -
2 Analog Audio Inputs: Left and Right, or Mono
-
2 Analog Audio Outputs: Left and Right, or Mono Sum
-12dB switch selects between Eurorack Level and Line Level -
Midi over USB
Allows bidirectional MPE and MPE+ connection to other devices; allows connection to the Haken Editor for editing and archiving EaganMatrix presets (USB-A cable included with purchase) -
Universal 3.5mm Midi In (Type A, Type B, and TS)
Allows connection to other Midi devices without need of computer or USB (adapter to 5-pin DIN Midi In included with purchase) -
Type B 3.5mm Midi Out
Allows connection to other Midi devices without need of computer or USB (adapter to 5-pin DIN Midi Out included with purchase) -
i2c Port for Communication to the Control Voltage Converter
(a switch selects between 3.5mm Midi Out and i2c functionality) -
12 Switches, 1 Rotary, and LED Matrix
A menu system allows stand-alone operation without need of computer, and provides monitoring for notes being played and CV input levels
