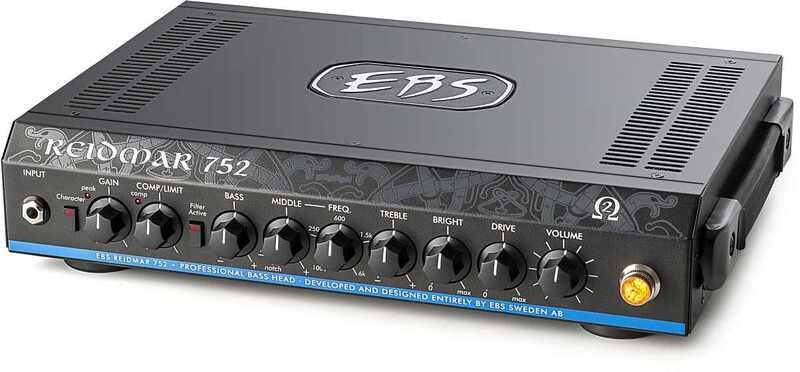

EBS Reidmar 752
- Input Impedance 1 Mohms / 100 pF
- Gain Range -00 - +30 dB
- Character Filter Shelving, High/Low Pass,
+7 dB @ 40 Hz, -2 dB @ 800 Hz,+3 dB @ 10 kHz - Tone Controls,
Bass Shelving +/-18 dB @ 60 Hz
Mid Bandpass Filter 100 – 6000 Hz +/- 12-15 dB
Treble Shelving +/-18 dB @ 6 kHz
Bright Shelving +15/-0 dB @ 10 kHz - Drive min/max 0/34 dB
- Balanced Output -10 dBv, Pre/Post EQ, GND Lift
- Remotes Output Remote Jack RING = Mute / TIP = Drive
Filter Jack RING = Filter Mode / TIP = Character - Output Power 750 W RMS @ 2 ohms load (450 W RMS @ 4 ohm, 230 W RMS @ 8 ohm)
- Dimensions (WxDxH) 36.3 x 26.2 x 7.6 cm (14.3 x 10.3 x 3.0")
- Weight 3.8 kg (8.3 lbs.)
- 4-band EQ
- Effects loop (send and return)
- Line out
- Remote Control Connections to add the EBS RM-4 footswitch to control Character (on/off), EQ-section (on/off), Drive (on/off), and Mute.
