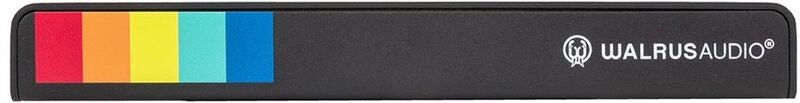

Walrus Audio Canvas Power 8
Tuotenumero 1085694Power supply, 8 isolated current outputs, LED indicator, 500 mA current, 4 Ampere, 96 Watt, 24V in and 24V Thru
Canvas power supplies bring simplicity and modularity to your pedalboard. With up to 500mA of current on each output, silent, isolated and "clean" direct current of 9V, these power supplies are perfect for the modern pedalboards.
Each model is available as a standalone power supply or as a linked set with another Canvas power supply via the 24V power adapter. The thin design means that Canva's power supply can fit under all pedalboards. Thanks to the built-in LED power meter, you can clearly see how much power is left, and each output has its own LED indicator that shows when power is being used. You will also find specially designed 2.1mm barrel cables in the package, specially designed with a 90 degree connector on one end and a super short straight connector on the other. The Canvas Power 8 has 8 isolated current outputs that provide up to 500mA of "clean" current at 9V. Two of the outputs are variable voltage, allowing you to switch between 9V, 12V and 18V to drive high voltage pedals. It also has a USB-C port to power devices like your phone or tablet while you play.
- Canvas Power is a modular, linkable ecosystem for powering your pedalboard
- Including external power supply unit: 4 Ampere, 96 Watt
- 8 isolated outputs
- All outputs provide 500mA
- 2 ports with variable output of 9, 12 or 18 Volts
- Slim profile that fits under most boards (incl. Pedaltrain Nano and Metro series)
- Clean, quiet, isolated power
- Enough angled power cables ("barrel to barrel") to power each pedal from one output
- Included power cables have a low profile to fit in tight spaces
- 24V in and 24V Thru to connect to "Canvas Power Link"
- LED power meter: 100%, 50%, 30%, 10% status indicator
- USB-C port to power accessories or charge phones/tablets
- Includes mounting brackets for mounting on raised boards such as Pedal Train and similar models
- Dimensions: 20.6 x 5.4 x 2.54 cm
Manufacturer specifications
Type: | 8 OUTPUT PSU |
Net Weight: | 0.3 kg |
Gross Weight: | 1, 15 kg |
