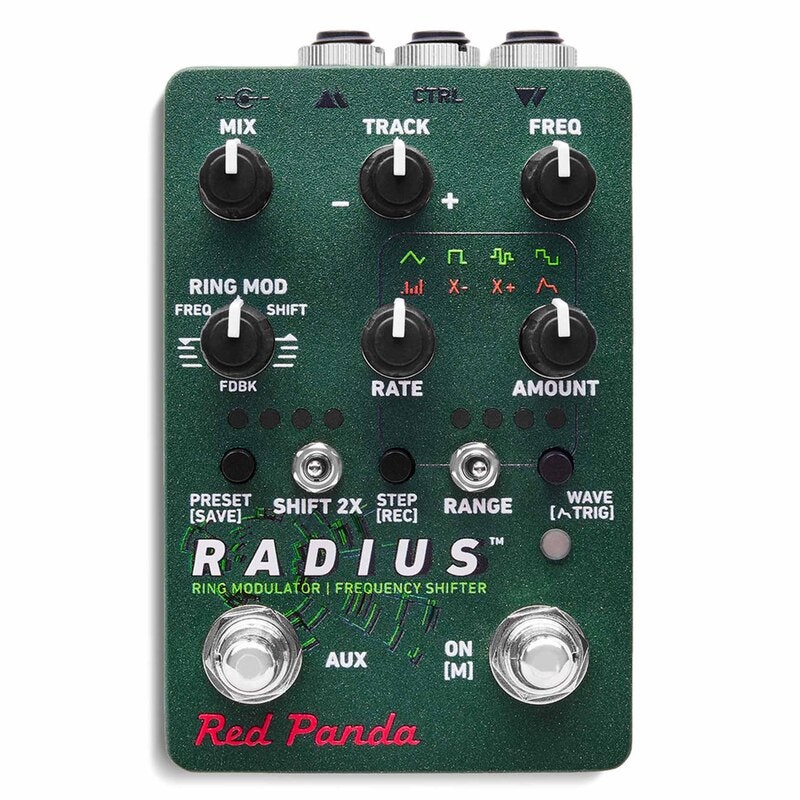

Red Panda Radius

The Radius is a ring modulator and frequency shifter with pitch tracking and an advanced LFO. It is designed around a novel "eight-quadrant multiplier" algorithm that smoothly transitions from ring modulation to frequency shifting and allows different frequency ratios for the upper and lower tones. Radius puts complex harmonic structures, bell-like tones, metallic textures, frequency shifting, soft tremolo, and bubbly phaser sounds at your fingertips.

• Stereo ring modulator and frequency shifter
• Continuous mix between ring modulation and frequency shifting
• Selectable 2X frequency ratios for upper and lower sidebands
• Frequency shifting with feedback
• Three carrier frequency ranges (low, high, quantized)
• Carrier frequency pitch tracking (monophonic, +/- 100%)
• Push-to-tune carrier oscillator
• MIDI-playable carrier oscillator
• Multi-waveform LFO (triangle, square, random, intelligent random, X mod +/-)
• Step modulator (1-8 steps), programmable via front panel
• Tap tempo and MIDI clock sync
• Envelope follower
• Envelope-triggered LFO (one-shot ramp, pulse, random, step mod)
• Presets (4 on board, 100 via MIDI)
• Expression pedal assignable to any combination of knobs
• Configurable AUX switch (tap, tune, preset, LFO)
• USB and TRS MIDI
• Full MIDI implementation
• 96 kHz sampling rate
• +8 dBu max. input level (line level friendly)
• Web editor with preset upload/download
• User-installable firmware updates (USB)
• Designed and assembled in USA
• Requires a 9V DC 200 mA power supply (not included)
