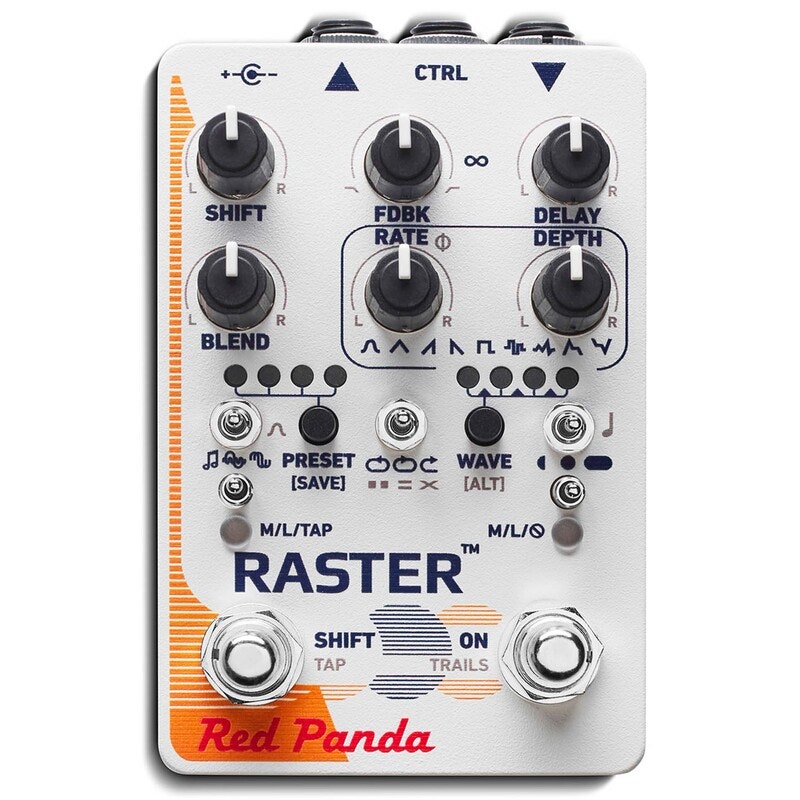

Red Panda Raster 2

The Raster 2 is a digital delay with a pitch and frequency shifter integrated into the feedback loop.  Forward or reverse delay can be shifted once or have continuously shifted repeats. It delivers a wide range of sounds including modulated and harmonized delays, reverse delays, chorus, arpeggios, infinite descents, chaotic self-oscillation, and continuously evolving soundscapes.

The core of the Raster is a clean delay with up to 1600 milliseconds of delay time. Three delay ranges allow you to precisely dial in resonant feedback sounds and instantly change delay time with rhythmic shifts.

• Digital Delay Pedal with integrated Pitch and Frequency Shifter
• 1600 ms stereo delay time in three ranges
• 3200 ms forward delay available via editor
• Micro pitch shifting and detuning
• Tuned pitch shifting, +/- 12 semitones
• Phase and frequency shifting
• Repeats shifted once or continuously
• Reverse delay
• 7 modulation waveforms, envelope, and reverse envelope
• Most parameters have left/right controls for stereo delay
• Parallel, series, or ping pong structure
• Tone control
• Stereo input/output (TRS)
• Soft touch bypass switch with selectable momentary, latching, or mute output
• Shift footswitch momentary, latching, or assignable to tap tempo
• Assignable expression pedal, remote switch, remote tap, or MIDI port
• Full MIDI implementation with additional parameters (USB or TRS)
• MIDI clock synchronization
• Presets (4 on front, 127 via MIDI)
• Web-based editor for editing presets and accessing hidden parameters
• Designed and assembled in USA
• Powered by a regular 9V DC PSU (centre -, 2,1 mm, 250 mA current draw)
