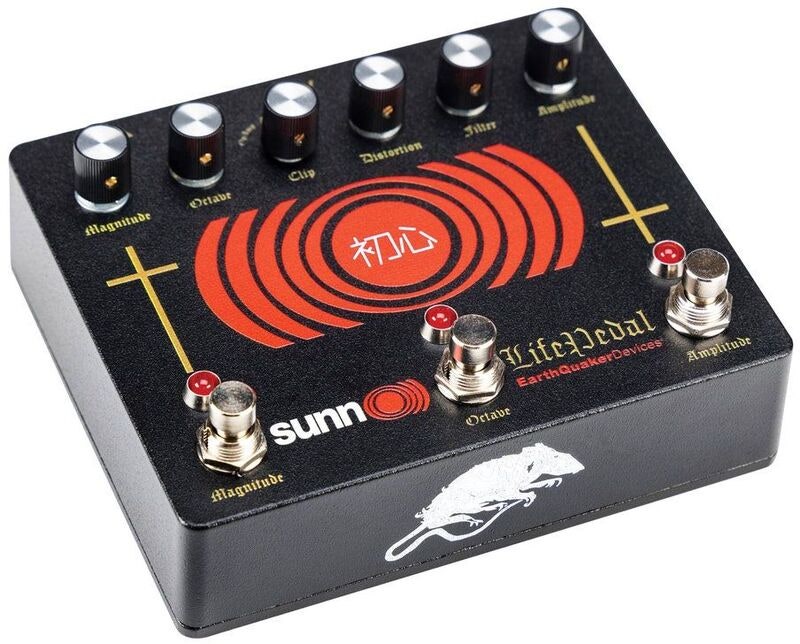

Earthquaker Devices Life Pedal V3

Main Features:

• Distortion pedal with a blendable analog octave up and a booster
- for instant earth-shaking Sunn O))) signature tones
• Version 3 of the popular Life Pedal designed in collaboration with Sunn O)))
• Features 3 different clipping options:
o Symmetrical Silicon
o Asymmetrical Silicon & LED
o Pure OpAmp Drive
• Distortion and booster can be used independently
• Expression and Footswitch control over analog octave up
• Octave blend allows total control over how much Octave is mixed into the circuit
• All-analog signal path
• True bypass
• Silent relay-based switching with Flexi-Switch® Technology
• Powered by regular 9 V DC PSU
    (centre -, 2,1 mm, ~25 mA current draw)

The Sunn O))) Life Pedal V3 is a distortion with a blendable analog octave up and a booster combined in one compact package. The “Amplitude” side is faithfully modeled after the classic “White Face” distortion unit, using modern, reliable components to last a lifetime. The only modifications made to the original circuit are in the clipping section. The traditional circuit uses a single pair of silicon diodes for a tight, compressed crunch.

As with version 2, Sunn O))) Life Pedal V3 offers two additional clipping options to better adapt to different rigs. The first position is no diodes to allow for full, grinding Op Amp assault at maximum volume. The second position utilizes two silicon diodes and one LED in an asymmetrical clipping configuration. This delivers a slightly compressed and smooth crunch, similar to a valve amplifier. The last position is the stock double silicon diode configuration which provides that classic tone you know and love.

The Octave in Life Pedal is an all-discrete, analog full-wave rectifier base on a classic vintage design. Located at the input of the circuit, the Octave control slowly blends in the octave effects as you turn it clockwise. This feature can also be used via expression control allowing for wild, hands-free octave swells mid-riff or using the footswitch for immediate octave fuzz destruction.

Because this is an analog octave effect, it is monophonic and works best playing single notes above the twelfth fret while using the neck pickup. Playing chords with the analog octave will sound clanging and chaotic.

Using the bridge pickup and playing below the twelfth fret will produce a very subtle octave effect. Going full Octave transforms Life Pedal from a simple distortion device into a swelling, raging fuzz similar to the classic Super Fuzz!

The “Magnitude” section of Life Pedal is a simple all-discrete MOSFET booster designed to blast your preamp tubes and drive them wild. It is a 100% clean, no-nonsense, high impedance booster that adds very little color to your tone. It does not add distortion on its own but has plenty of output to push your amp into saturation.

The signal path goes Octave>Distortion>Boost. The octave distortion and booster can be used independently with their own respective foot switches. The Petrine Cross is the octave distortion and the Christian Cross is the booster.
