TURNTABLI7M

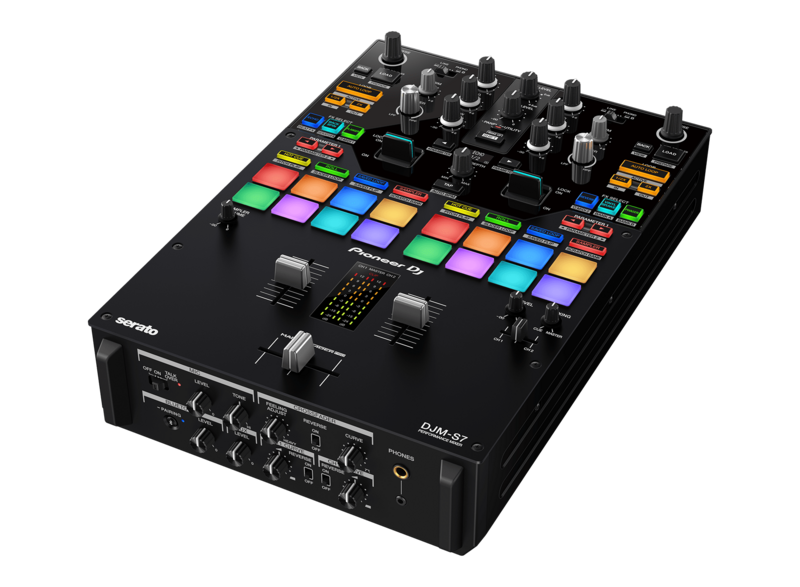

This new 2-channel battle mixer gives you the freedom to customize your setup and bring your own unique style to every performance. The unit enables free use of Serato DJ Pro and it’s a Hardware Unlock device for rekordbox, so you can use performance features in either application.
KEY FEATURES
Magvel Fader Pro
We’ve enhanced the feeling of the Magvel Fader Pro and boosted the rigidity of the knob mounting shaft in the vertical direction by 30 percent so you can scratch with even more confidence.
Large Performance Pads
The 8 large Performance Pads on each channel are easy to hit when you want to rapidly fire off Hot Cues and samples. And with independent pad modes, you can use 2 different features – one on each channel’s set of pads – at the same time.
Large effect levers
Twist sounds on the fly by adding effects with the large levers. The DJM-S7 includes all 22 built-in Beat FX from the DJM-S11 so you can get creative with these, as well as software effects in Serato DJ Pro and rekordbox. It’s easy to change the 6 effects assigned to the FX Select buttons and you can keep an eye on the name and beat value of the one you’re using by glancing at the OLED display.
Bluetooth input: Wirelessly add audio from your phone
Simply pair your phone with the DJM-S7 via Bluetooth and you can drop sounds straight into your set. You can play loops to scratch over or use a music app to play a track requested by someone in the audience. Or simply have your mobile device connected and ready as a backup in case your laptop fails. You can play the sound directly through the master output or either of the channels.
Loop MIDI
This feature in the effects section of the DJM-S7 can control various functions in your DJ software by repeatedly sending a MIDI signal to the software in a set beat cycle. Functions including Hot Cue, sampler, and key shift-up are preassigned so you can start using Loop MIDI straight away.
SPECIFICATIONS
Width: 267 mm
Height: 107.9 mm
Depth: 397.4 mm
Weight: 4.5 kg
Power Consumption: 24W
Frequency Range: 20 - 20000 Hz
Power Supply: AC 100-240 V, 50 Hz / 60Hz
S/N Ratio USB: 110 dB (USB), 103 dB (LINE), 88 dB (PHONO), 80 dB (MIC), 103 dB (AUX)
Distortion: 0.003% (USB), 0.005% (LINE)
Main Features
MIDI Control: Assignable
Compatible DJ Software: Unlocks Serato DJ Pro, rekordbox, DVS Control, Unlocks Serato DVS
Bluetooth Audio Input
Version: Bluetooth standard version 5.0
Supported Codecs: SBC, AAC, Qualcomm® aptX™, Qualcomm® aptX™ Low Latency
Maximum Communication Distance: Approximately 10 m in unobstructed circumstances
What's in the box
Power cord
USB cable
Quick Start Guide
Precautions for Use
Serato DJ Pro Expansion Pack Voucher (Pitch 'n Time DJ)
Master
Level Meter Size: 9 segment
Channels
EQ/ISO: 3 band
EQ/ISO Range: –∞ dB to +6 dB
Reverse Channels. Yes
Peak Limiter: Yes
Performance Control
Channels: 2
Sound Colour FX: Filter, Dub Echo, Noise, Pitch, Wide Filter
Beat FX: Echo, Ducking Echo, Echo Out, Spiral, Helix, Delay, Reverb, Back Spin, One-shot Spin, Vinyl Brake, One-shot Brake, Flanger, Phaser, HP Filter, LP Filter, Trans, Kill, Roll, Fader Pitch, Fader Synth
Effect Sampler
Auto BPM Counter: Yes
Crossfader
Crossfader Type: Magvel Fader Pro
CURVE Assignable: Yes
Reverse Crossfader: Yes
Feeling Adjustment: Yes
Mic
Mic Connection: XLR / 1/4-inch Jack Combo
Talkover Attenuator: Yes
Sound card
Connection: USB (Type-B)
Sample Rate: 24 bit
Frequency: 48 kHz
Terminals
Inputs: 2 LINE (RCA), 2 PHONO (RCA), 1 MIC (XLR & 1/4 inch TRS Jack), 1 AUX (RCA)
USB: 2 USB A ports, 2 USB B ports
Outputs: 2 MASTER (XLR, RCA), 1 BOOTH (1/4 inch TRS Jack), 2 PHONES (1/4-inch stereo jack, 3.5-mm stereo mini-jack)
